Channel Controller

The SCTM channel can be used as the capture input or compare match output. The capture input or
compare match output channel is composed of a preload register and a shadow register. Data access
of the APB bus is always implemented by reading/writing the preload register.
When used in the input capture mode, the counter value is captured into the CHCCR shadow
register first and then transferred into the CHCCR preload register when the capture event occurs.
When used in the compare match output mode, the contents of the CHCCR preload register is
copied into the associated shadow register, the counter value is then compared with the register
value.
CHPSC
Capture
Controller
Read CHCCR
CHCCS
CHCCG
CHE

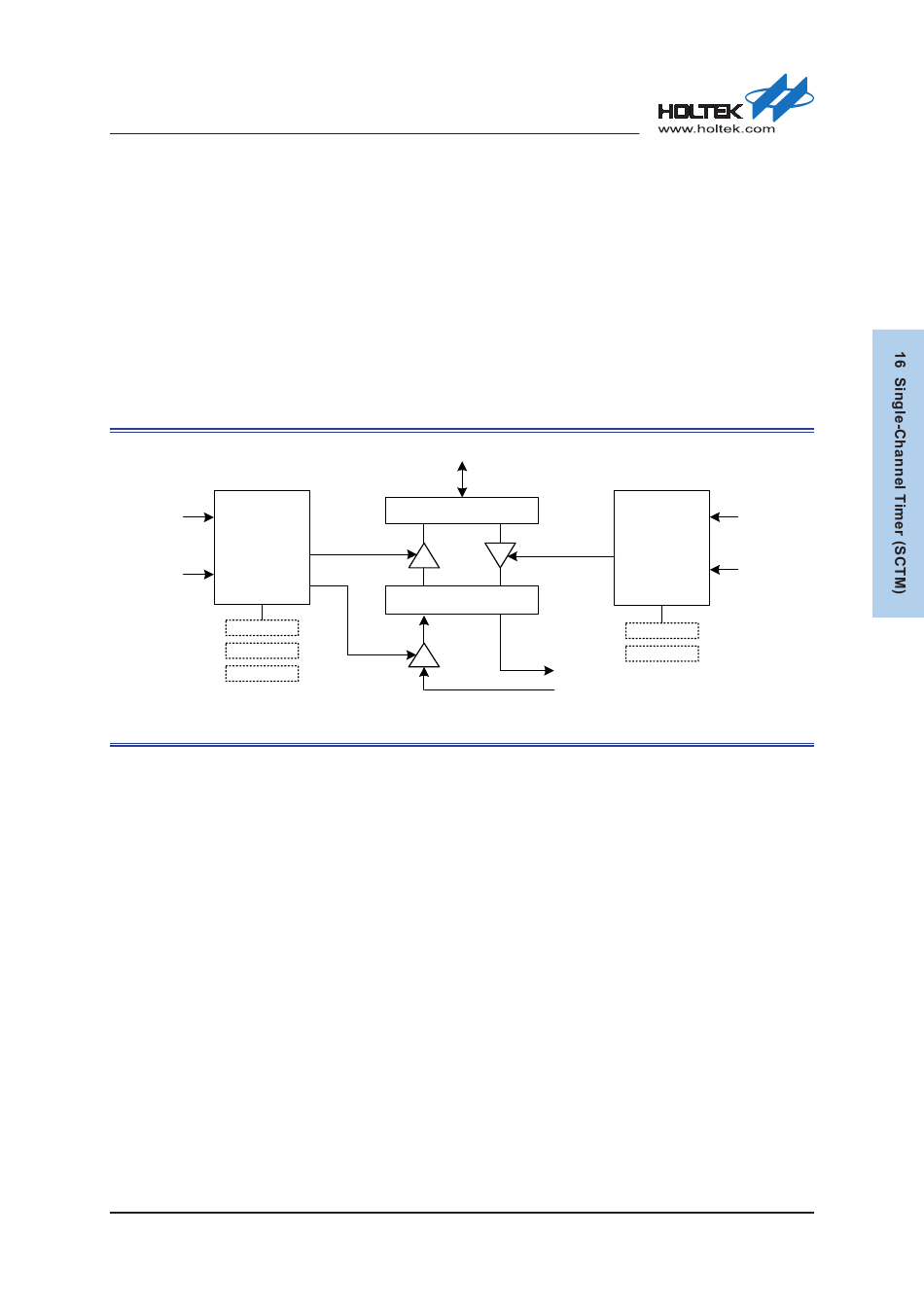

Figure 124. Capture/Compare Block Diagram

Rev. 1.00
APB Bus Interface
CHCCR
(Preload Register)
Capture Transfer
CHCCR
(Shadow Register)
Capture
372 of 576
Compare
Compare Transfer
Controller
CHCCS
CHPRE
CHCCR
TM_CNT
Write CHCCR
Update Event
