NetApp StorageGRID SG6000 Manual page 8

Component
Flash array (controller shelf)
SGF6024 diagrams

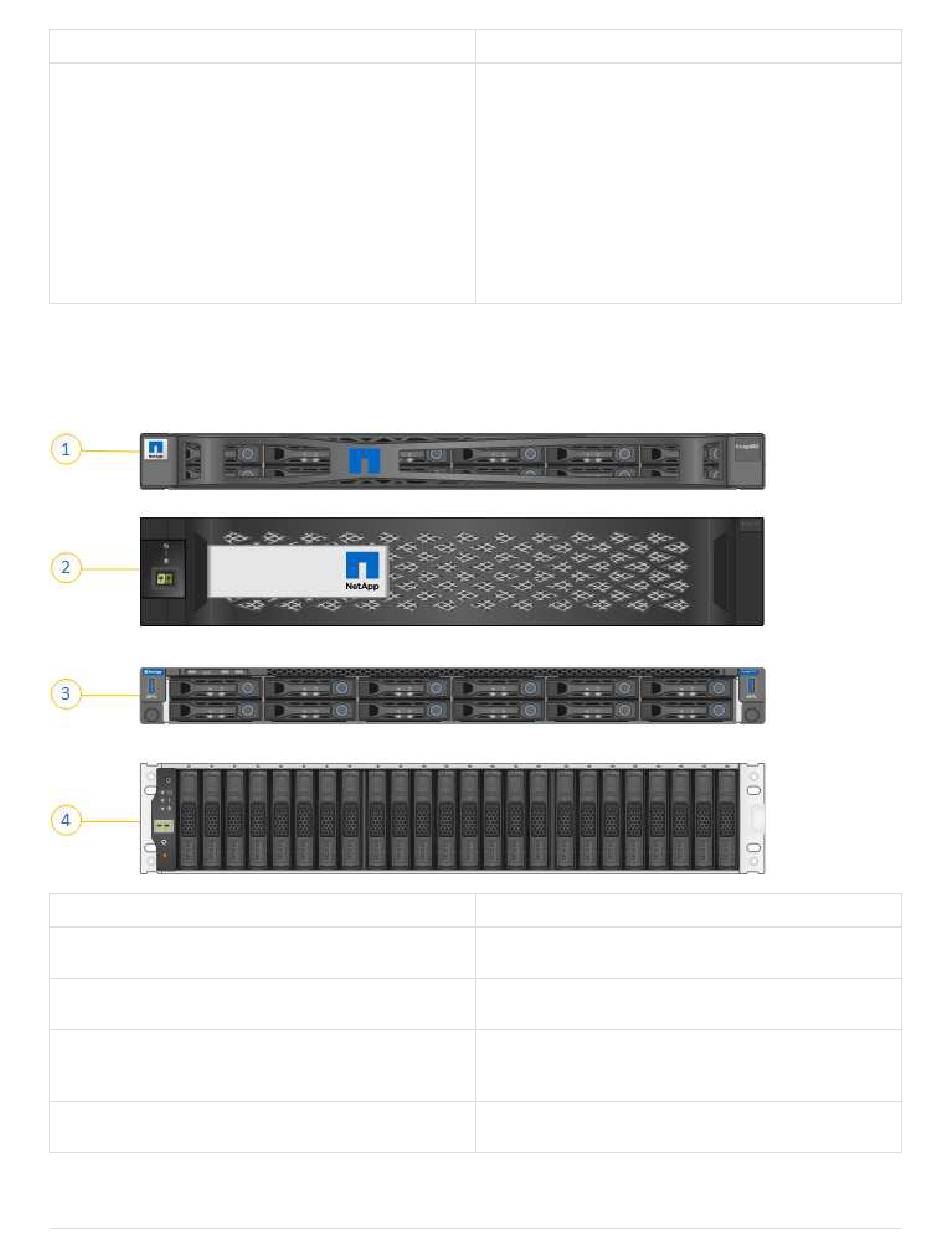

This figure shows the front of the SGF6024, which includes a 1U compute controller and a 2U enclosure
containing two storage controllers and 24 flash drives.
Callout
1
2
3
4
This figure shows the back of the SGF6024, including the compute and storage controllers, fans, and power
6
Description
E-Series EF570 flash array (also known as a
controller shelf), a 2U shelf that includes:
• Two E-Series EF570 controllers (duplex
configuration) to provide storage controller failover
support
• 24 solid state drives (also known as SSDs or flash
drives)
• Redundant power supplies and fans
Description
SG6000-CN compute controller with front bezel
EF570 flash array with front bezel
SG6000-CN compute controller with front bezel
removed
EF570 flash array with front bezel removed
