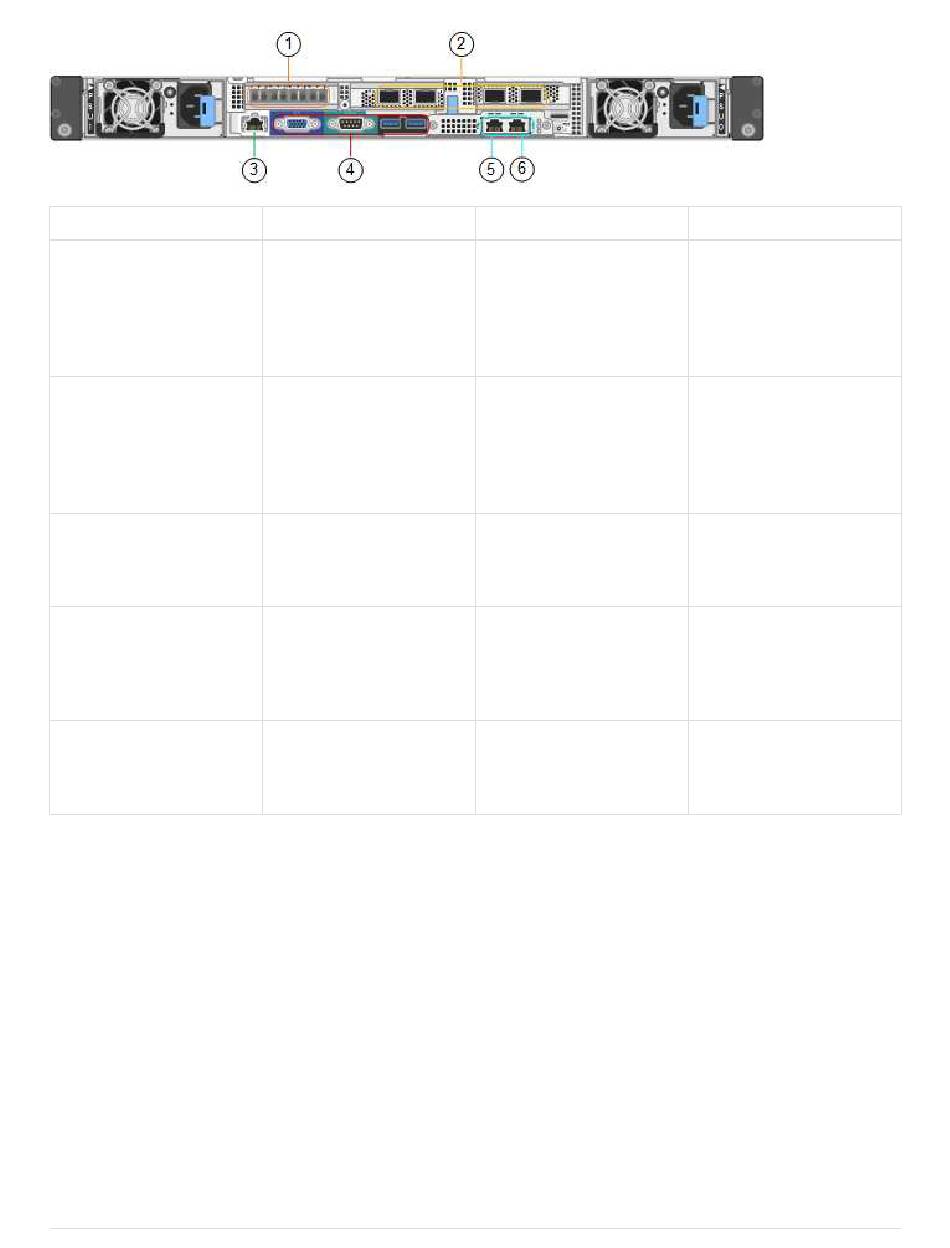

NetApp StorageGRID SG6000 Manual page 10

1
2
3
4
5
8
Port
Interconnect ports 1-4
Network ports 1-4
BMC management port
Diagnostic and support
ports
Admin Network port 1
Type
16-Gb/s Fibre Channel
(FC), with integrated
optics
10-GbE or 25-GbE, based
on cable or SFP
transceiver type, switch
speed, and configured link
speed
1-GbE (RJ-45)
• VGA
• Serial, 115200 8-N-1
• USB
1-GbE (RJ-45)
Use
Connect the SG6000-CN
controller to the E2800
controllers (two
connections to each
E2800).
Connect to the Grid
Network and the Client
Network for StorageGRID.
Connect to the SG6000-
CN baseboard
management controller.
Reserved for technical
support use.
Connect the SG6000-CN
to the Admin Network for
StorageGRID.
