NetApp StorageGRID SG6000 Manual page 64

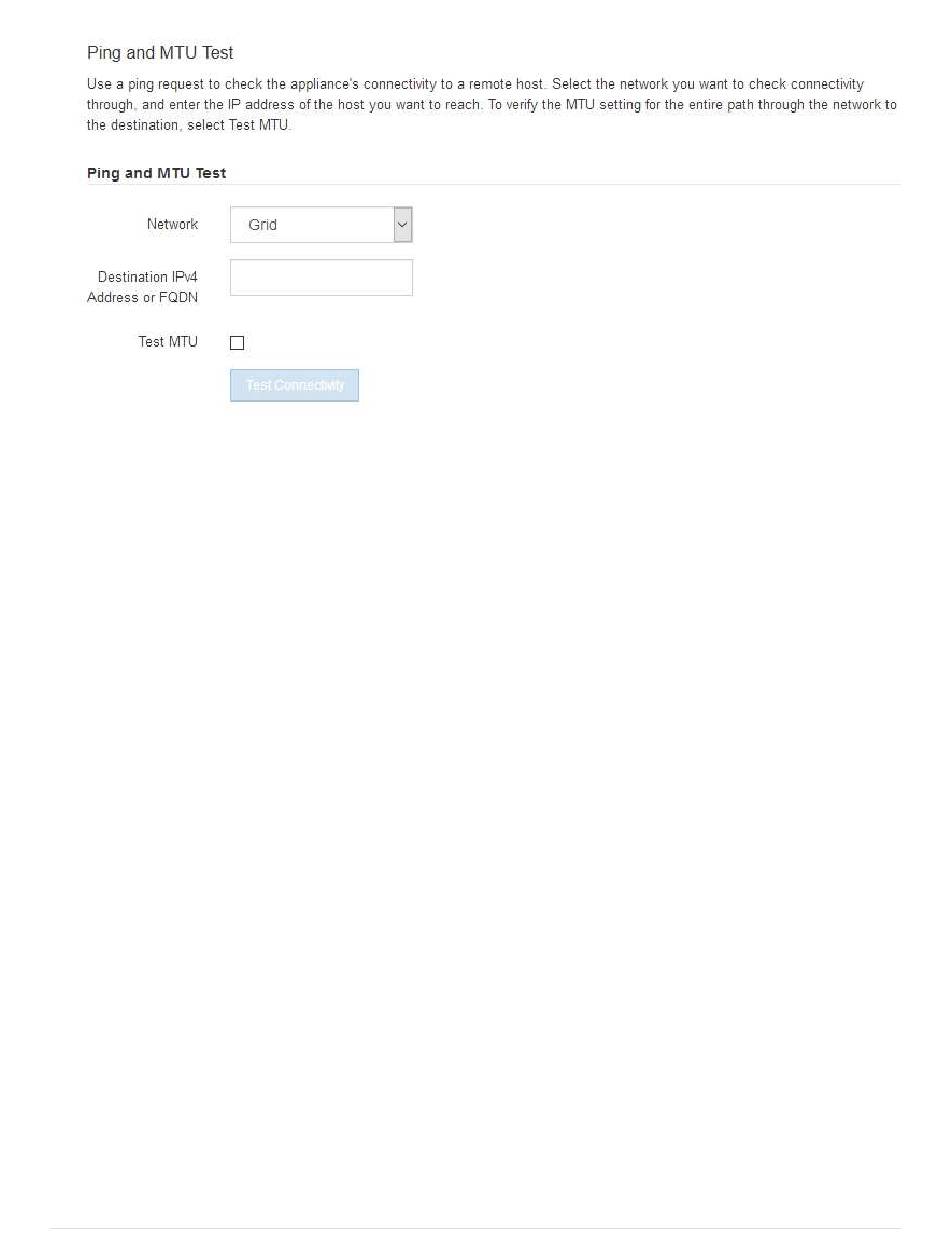

2. From the Network drop-down box, select the network you want to test: Grid, Admin, or Client.
3. Enter the IPv4 address or fully qualified domain name (FQDN) for a host on that network.
For example, you might want to ping the gateway on the network or the primary Admin Node.
4. Optionally, select the Test MTU check box to verify the MTU setting for the entire path through the network
to the destination.
For example, you can test the path between the appliance node and a node at a different site.
5. Click Test Connectivity.
If the network connection is valid, the "Ping test passed" message appears, with the ping command output
listed.
62
