Type of shelf
Optional
expansion shelf
for SG6060 (one or
two)
EF570 controller
shelf for SGF6024
SG6000-CN
controller for each
appliance
4. Decide where you are going to install the appliance.
When installing the E2860 controller shelf or optional expansion shelves, install hardware
from the bottom to the top of the rack or cabinet to prevent the equipment from tipping over.
To ensure that the heaviest equipment is at the bottom of the cabinet or rack, install the
SG6000-CN controller above the E2860 controller shelf and expansion shelves.
Before committing to the installation, verify that the 0.5m optic cables shipped with the
appliance, or cables that you supply, are long enough for the planned layout.
Related information
NetApp Hardware Universe
NetApp Interoperability Matrix Tool
Unpack boxes (SG6000)
Before installing the StorageGRID appliance, unpack all boxes and compare the contents
to the items on the packing slip.

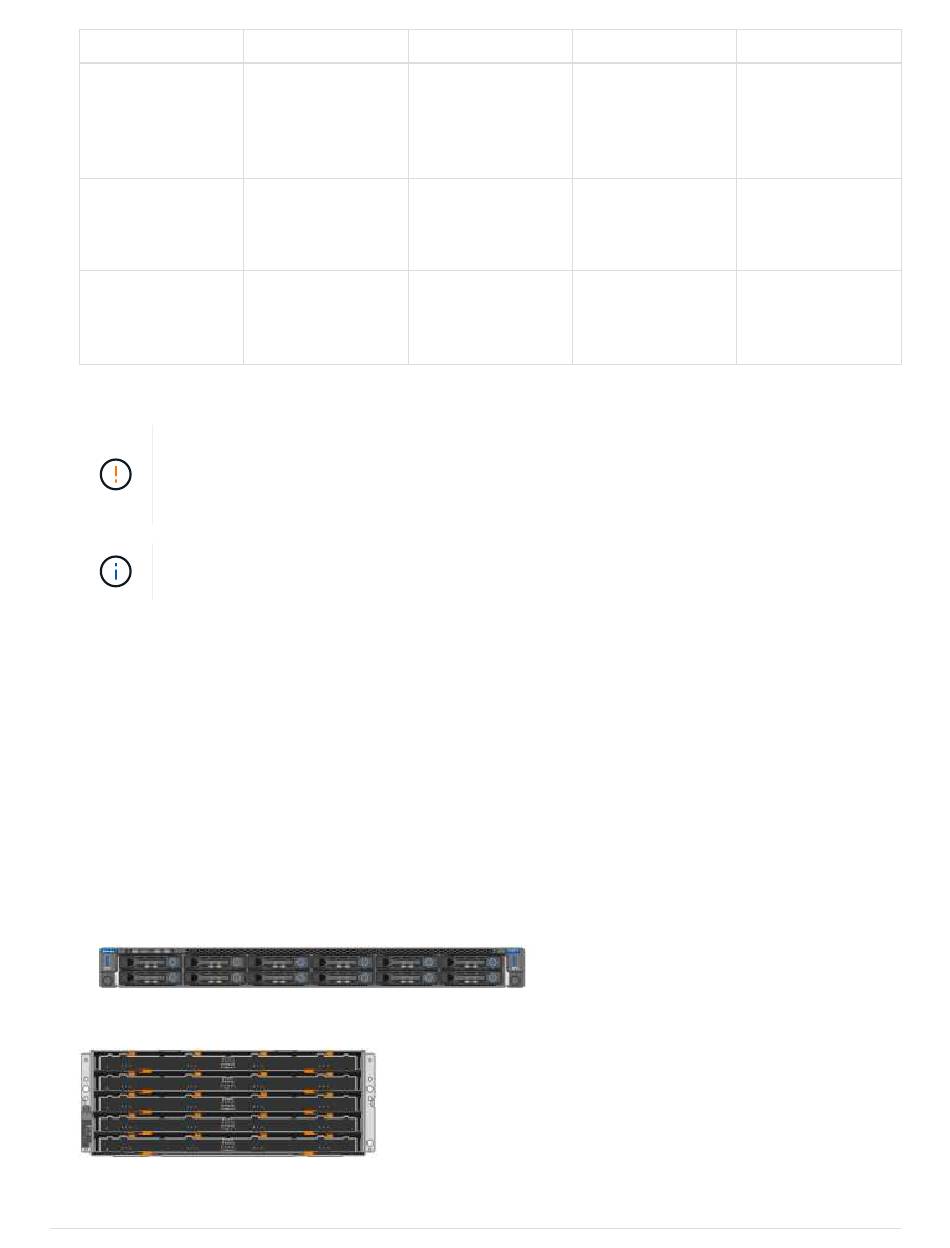

SG6060
• SG6000-CN controller
• E2860 controller shelf with no drives installed
Height Width
6.87 in. 17.66 in.
(17.46 cm) (44.86 cm)
3.35 in. 17.66 in.
(8.50 cm) (44.86 cm)
1.70 in. 17.32 in.
(4.32 cm) (44.0 cm)
Depth Maximum weight
38.25 in. 250 lb.
(97.16 cm) (113 kg)
19.00 in. 51.74 lb.
(48.26 cm) (23.47 kg)
32.0 in. 39 lb.
(81.3 cm) (17.7 kg)
