Generating Graph Overlays

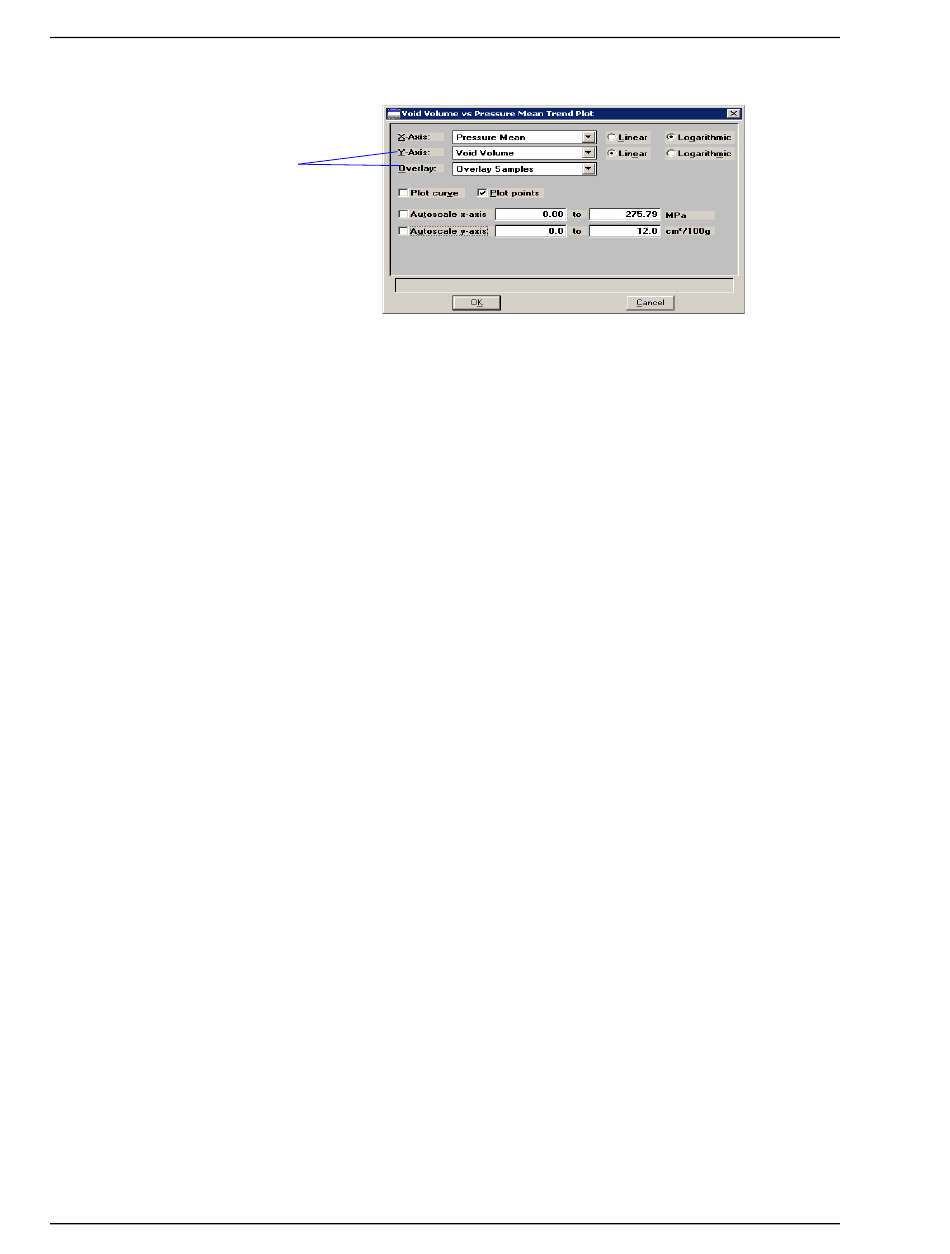

These two graphs
will be overlaid.
4. Click the down arrow at the Overlay field and select a graph type from the list. This
selection will be overlaid on the graph selected in the Y-Axis field.
5. Click to return to the Report Options dialog.
OK
6. Click
Save
You must click
an analysis. For example, you may be creating a Report Options file containing overlay
options that you can load into a sample file as needed.
7. Select Reports > Start Report; the Start Report screen is displayed with the name of your
primary file in the File name field.
8. Choose the output destination, then click
9. Ensure that the desired graph is selected (preceded with a check mark), then click
3-30
to save your selections, but saving them is not necessary to view overlay results.
if you are specifying overlay options on a file that has not been used in
Save
; the Select Reports dialog is displayed.
OK
