Clean System - Micromeritics DVVA II 4000 Operator's Manual

DVVA II 4000

Clean System

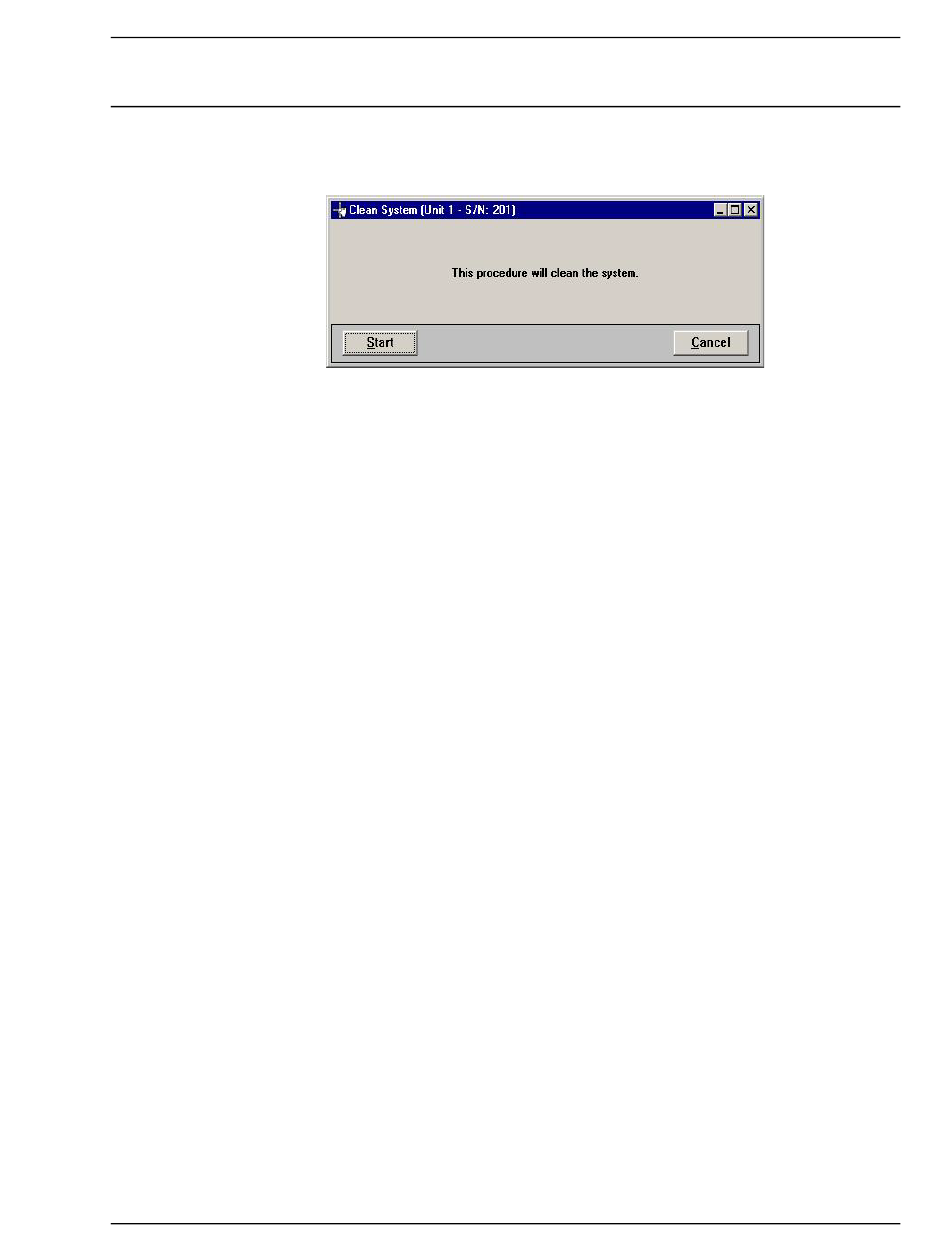

Cleans residual sample from the inner walls of the sample chamber; the Clean System dialog is
displayed.
1. Wipe off the upper piston tip.
2. Remove the sample tray and insert the waste tray.
3. Press the Reset button on the instrument's front panel.
4. Click
Start
5. When the cleaning process is complete, all components return to a ready state and the dialog
closes automatically.
6. Remove the waste try and empty its contents.
7. Wipe off the lower piston tip.
8. Insert the sample tray.
9. Press the Reset button on the instrument's front panel.
Start
Cancel
400-42803-01 (Rev B) - July 2017
on the Clean System dialog.
Starts the cleaning process. The piston travels down the
sample chamber, removing any residual sample as it
travels.
Cancels the operation; all components return to a ready
state.
Clean System
6-9
