Micromeritics DVVA II 4000 Operator's Manual page 77

DVVA II 4000

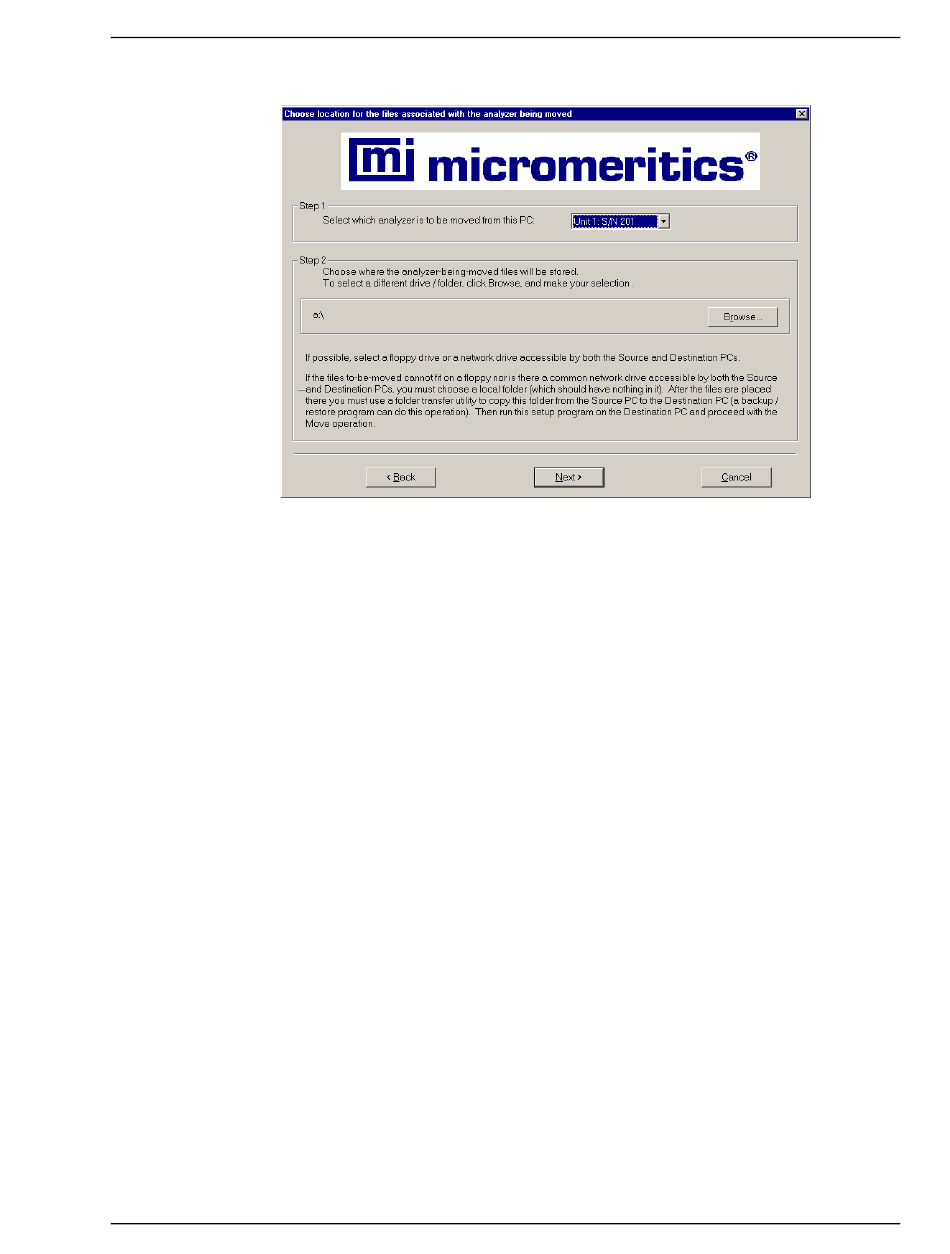

5. In the Step 1 group box, select the analyzer that is to be moved.
6. In the Step 2 group box, choose a location in which the moved files will be stored. If
possible, choose a drive that will accommodate removable media or a shared network drive.
If this is not possible, select a local folder. After the files are placed there, use a folder
transfer utility to copy this folder from the Source PC to the Destination PC.
7. Click
Next
8. Start the application setup program on the destination computer.
9. In the Setup dialog, select Move an analyzer from one PC to another PC; the Move
analyzer operation dialog is displayed (shown on previous page).
10. Select Destination PC, then click
400-42803-01 (Rev B) - July 2017
; the files are moved and the setup Welcome screen is displayed.
Next
Using the Setup Program for Other Functions
; the following dialog is displayed.
4-15
