Maintenance

Replacing and Conditioning the Piston Tip

The piston tip should be replaced when deemed necessary; and must be conditioned before
using.

Replacing the Upper Piston Tip

1. Select Unit 1 > Return Upper Piston Home to move the piston to its uppermost position,
completely out of the sample chamber.

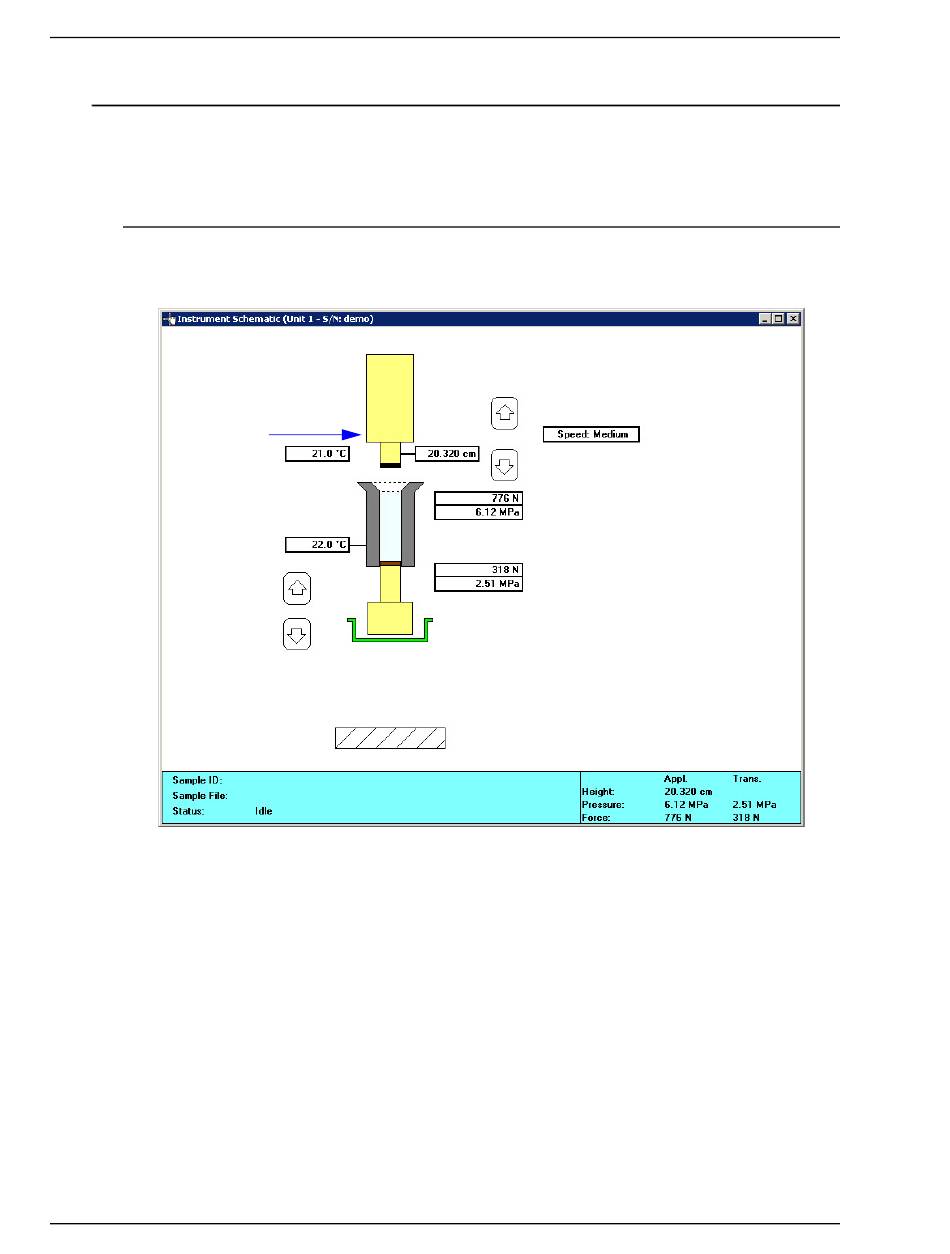

Upper piston
home position
2. Slide the sample compartment shield to its uppermost position.
3. Place a stiff piece of paper or cardboard over the top of the sample funnel to prevent the
loosened tip from accidentally falling down into the chamber.
