Micromeritics DVVA II 4000 Operator's Manual page 205

DVVA II 4000

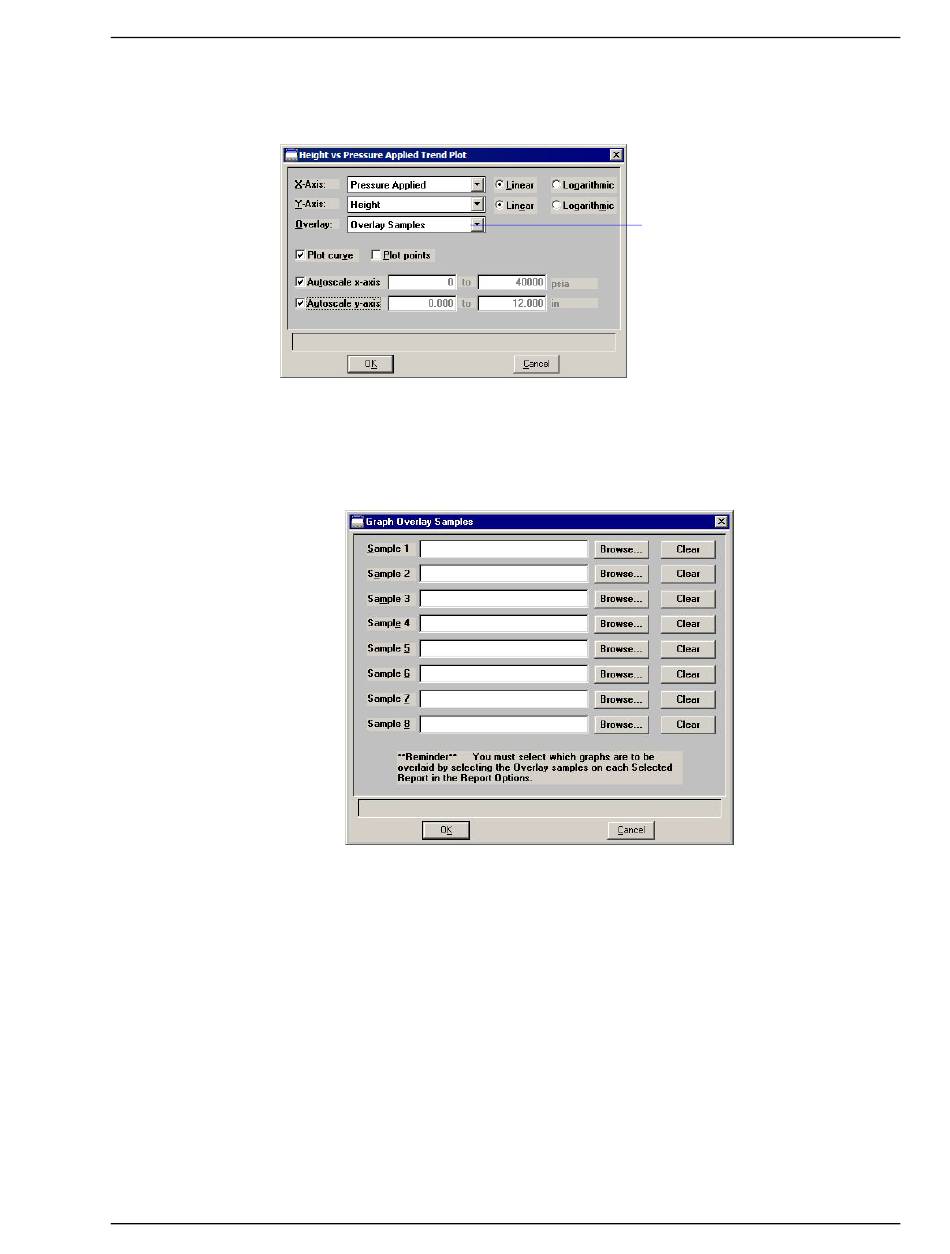

3. Highlight Height vs Pressure Appl and click
is displayed.
4. Click the down arrow to the right of the Overlay field and choose Overlay Samples, then
click to return to the Report Options dialog.
OK
5. Click
Overlays
6. Click
Browse
used in the conditioning procedure.
7. Click to return to the Report Options dialog.
OK
8. Click
Save
9. Click Reports > Start Report; the Start Report dialog is displayed. Note that the number of
your open file defaults to the File name field.
10. Be sure the destination is set at Screen, then click
displayed.
400-42803-01 (Rev B) - July 2017
on the Report Options dialog; the Graph Overlay dialog is displayed.
to the right of the first five Sample [n] fields and select the remaining files
on the Report Options dialog; do not close the dialog.
; the Height vs. Pressure Trend Plot dialog
Edit
Click the down arrow
and choose Overlay
Samples.
; the Selected Reports dialog is
OK
Maintenance
9-25
