Trend Plots

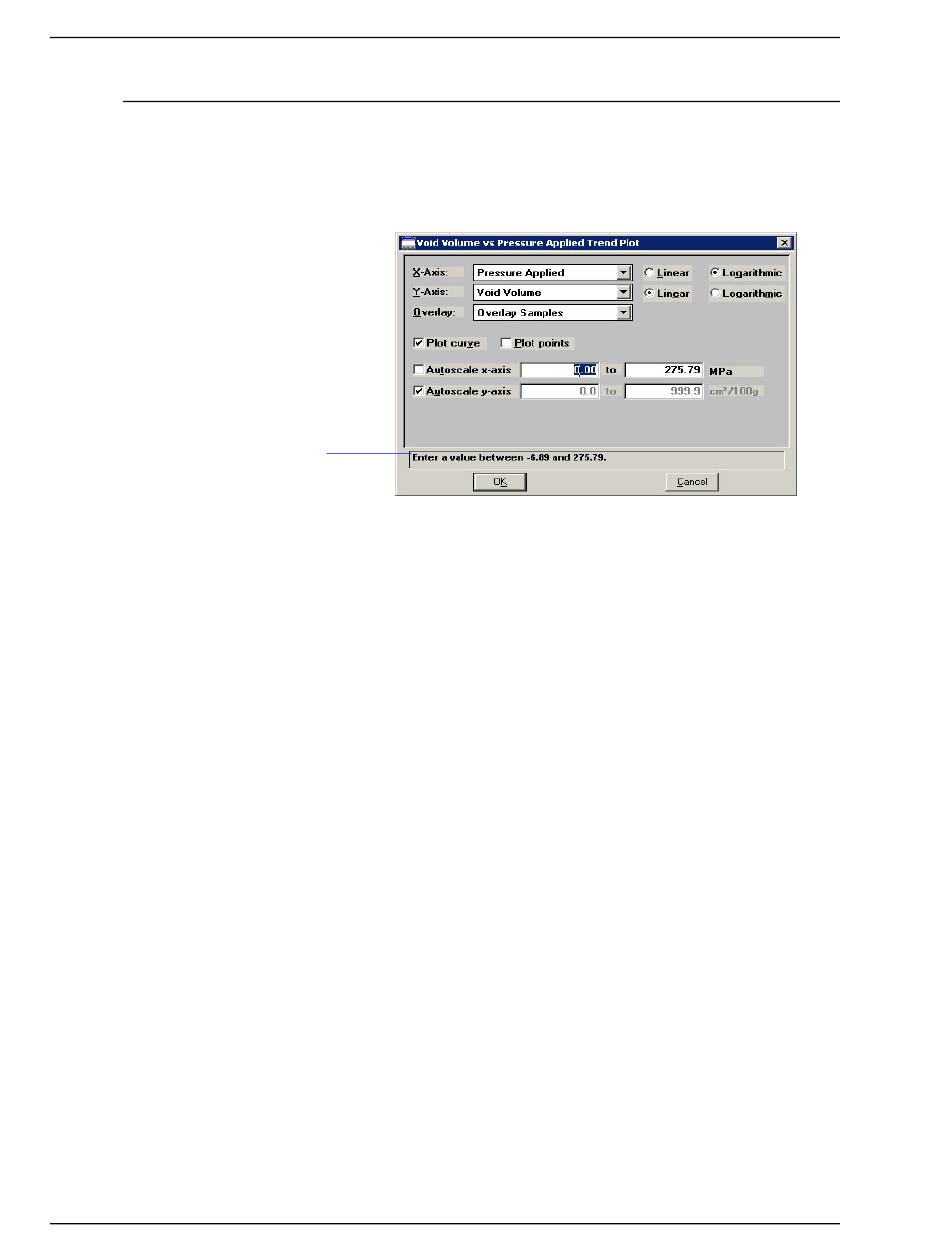

There are seven trend plots listed in the Selected Reports window. These plots can be generated
as shown, or they can be customized. The report title is based on the parameters displayed for the
x- and y-axes. For example, this report's title is Void Volume (Y-axis variable) vs. Pressure
Applied (X-Axis variable) Trend Plot.
Displays the range
for the selected field.
Each time you change the X- or Y-axis variable, the change is reflected in the title bar. Graphs
and tables will display a maximum of 8000 points. All data points will be displayed if the number
of points is less than or equal to 8000; every other data point will be displayed if the number of
points is in the range of 8001 to 16000; and so forth.
X-Axis
Y-Axis
Linear
Logarithmic
Overlay
5-20
These drop-down lists contain the variables available for the
X- and Y-axes (refer to page 5-18).
Enables you to plot the axes on a linear or logarithmic scale.
Contains choices for overlaying plots. From this drop-down
list, you can select:
• another variable to overlay with the variable shown in the
Y-Axis field, or
• Overlay Samples to overlay data of the type selected in
the Y-Axis field with the same type of data contained in
other sample files. The other sample files are selected by
clicking on the Report Options dialog.
Overlays
Choose None if you are not generating overlays.
