Software

Dialog Boxes and Subdialog Boxes

Dialog boxes are displayed when an item followed by an ellipsis (...) is selected. Subdialog boxes
are displayed when a push button on a dialog box is selected.
Both types of dialogs may contain one or more of the following:
Data entry field
Push button
2-8
These fields may be numeric (numbers only) or alphanumeric
(numbers, letters, or printable characters).
Typically, a push button is used to display a subdialog box in
which to edit, enter, or specify additional information about the
subject matter like the

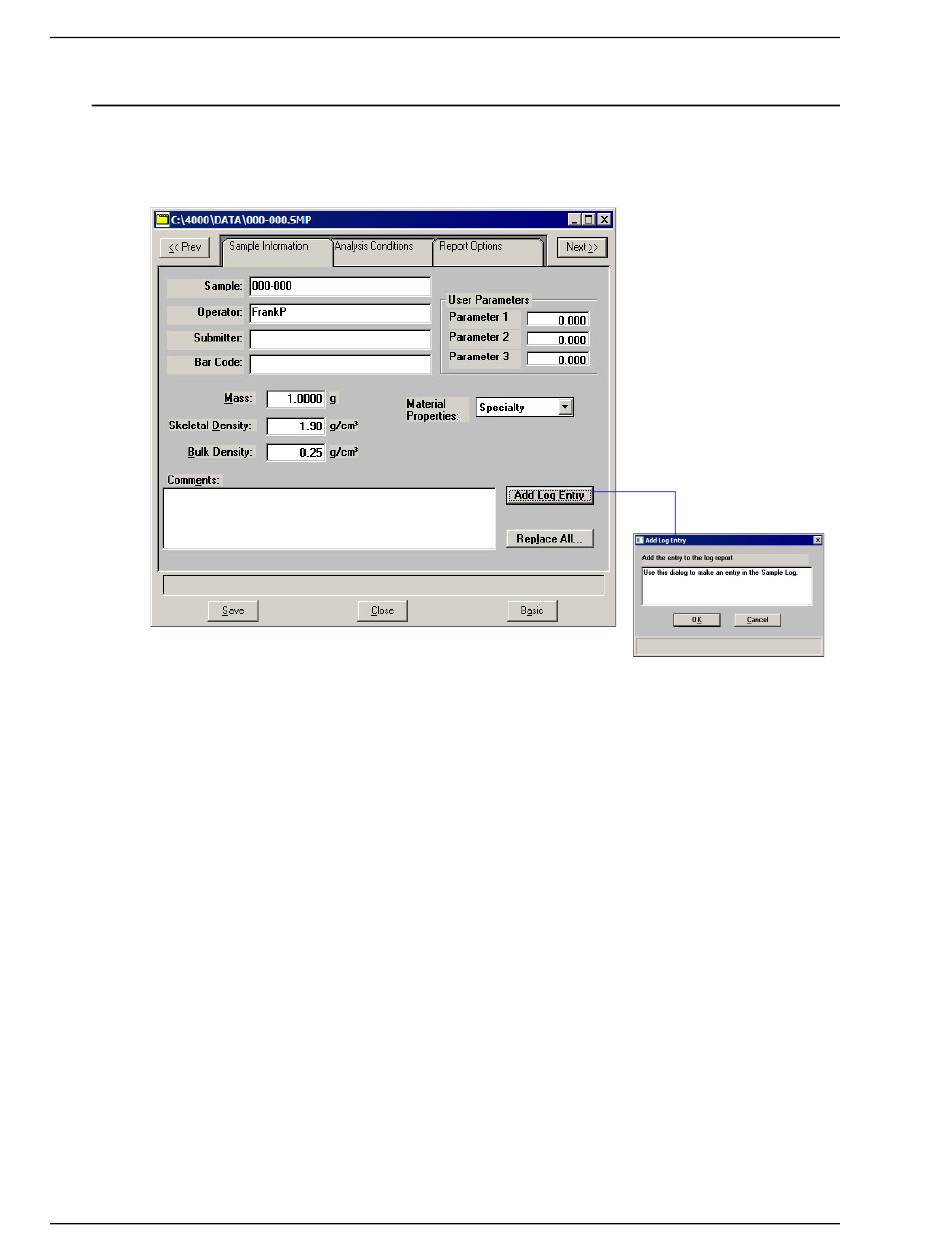

Add Log Entry
above. Some push buttons, however, are used to invoke an
action; for example,
Save
Dialog box
Subdialog box
push button shown
saves entries in the current dialog.
400-42803-01 (Rev B) - July 2017
DVVA II 4000
