SECTION 5 - BASIC HYDRAULIC INFORMATION & HYDRAULIC SCHEMATICS
3. Install washer ring (27) on rod (29). Install cylinder head
assembly on rod. Do not damage or dislodge wiper and
rod seals. Push head along rod to rod end.
4. Install O-ring (19) in spacer (20). Slide piston spacer on
rod.
5. Install backup ring (17), O-ring (18) and backup ring (17)
in inner diameter grooves of piston (16). Install two seals
(15) and lock rings (14) in outer grooves of piston.
14
19
20

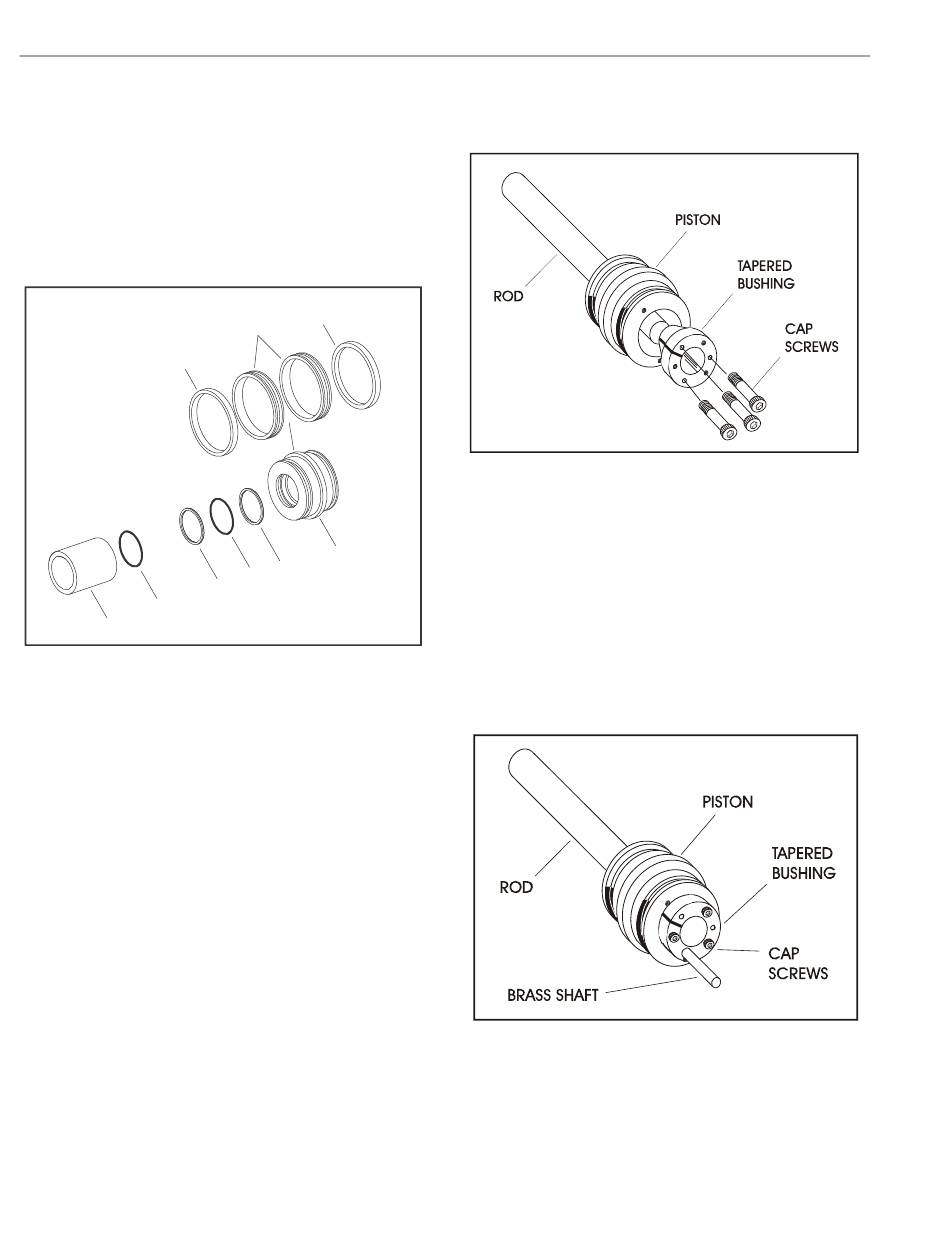

Figure 5-86. Piston Seal Kit Installation
6. Using suitable protection, clamp cylinder rod in a vise or
similar holding fixture as close to piston as possible.
7. Thread piston on cylinder rod hand tight. Ensure O-ring
and back-up rings are not damaged or dislodged.
NOTE: Piston and mating end of rod must be free of oil when
installing tapered bushing.
8. Thread piston on rod until it aligns with spacer end and
install tapered bushing.
NOTE: When installing the tapered bushing, piston and mating
end of rod must be free of oil.
9. Apply JLG Threadlocker (P/N 0100011) to tapered bush-
ing bolts. Assemble the tapered bushing loosely into the
5-86
14
15
16
17
18
17
piston and insert capscrews through the drilled holes in
the bushing and into the tapped holes in the piston.
Figure 5-87. Tapered Bushing Installation
10. Tighten the capscrews evenly and progressively in rota-
tion to 9 ft.lbs. (12 Nm).
11. After the screws have been torqued, tap the tapered
bushing with a hammer (16 to 24 oz.) and brass shaft
(approximately 3/4" in diameter) as follows;
a. Place the shaft against the cylinder rod and in con-
tact with the bushing in the spaces between the
capscrews.
b. Tap each space once; this means the tapered bush-
ing is tapped 3 times as there are 3 spaces between
the capscrews.
Figure 5-88. Seating the Tapered Bearing
12. Retorque the capscrews evenly and progressively in
rotation to 9 ft.lbs. (12 Nm).
