  • Page 1 E3 Scissor Platform Control Measures October, 2012...
  • Page 2 The overriding of the load-sensing system shall allow motion of the platform sufficient to rescue the operator. Features shall be provided to protect against misuse of the overriding system. Refer to the JLG operating manual for the Scissorlift . Download operators manuals from: www.jlg.com.au...
  • Page 3 Control measure 1530E3 1932E3 2033E3 2046E3 2646E3 2658E3 Platform Emergency Stop switch, Mechanical guarding at controls Controls >50mm below the guard rails Trigger switch as enable switch Inactivity Timer on trigger switch Yes, 3 seconds Yes, 3 seconds Yes, 3 seconds Yes, 3 seconds Yes, 3 seconds Yes, 3 seconds...
  • Page 4 JLG E3 Series Scissor lift 1532E3,1932E3, 2033E3, 2046E3, 2646E3, 2658E3 Mechanical protection: Joystick controller protected by external metal guard over the control box. Platform control Box mounted on front rail. Control System: Emergency switch shuts down all platform functions. Drive and lift...

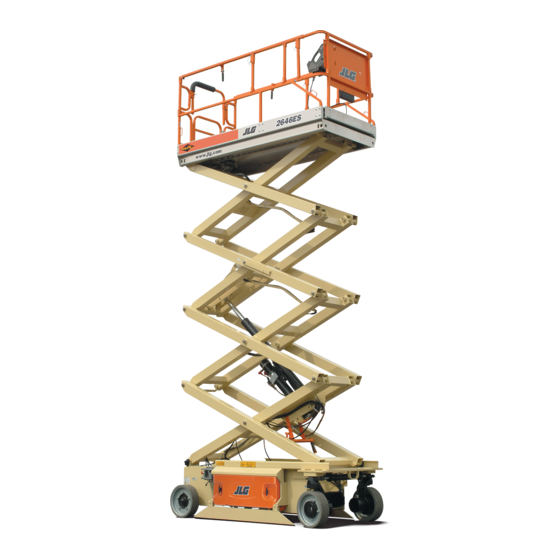

  • Page 5 JLG E3 Scissor with Proportional platform control system and mechanical guarding.
  • Page 6 E3 Scissor all sizes scissors function, and 3246E2 with Proportional motor control • The JLG designed SMART System™ is a 24 Volt multiplex motor control unit installed on the electric scissor lift models 1532E3, 1932E3, 2033E3, 2046E3, 2646E3 and 2658E3.
