Define the Bottom Dispense Height

The bottom dispense height defines the height of the manifold during a dispense for a
Bottom wash. The dispense height must be higher or equal to the height for aspiration.

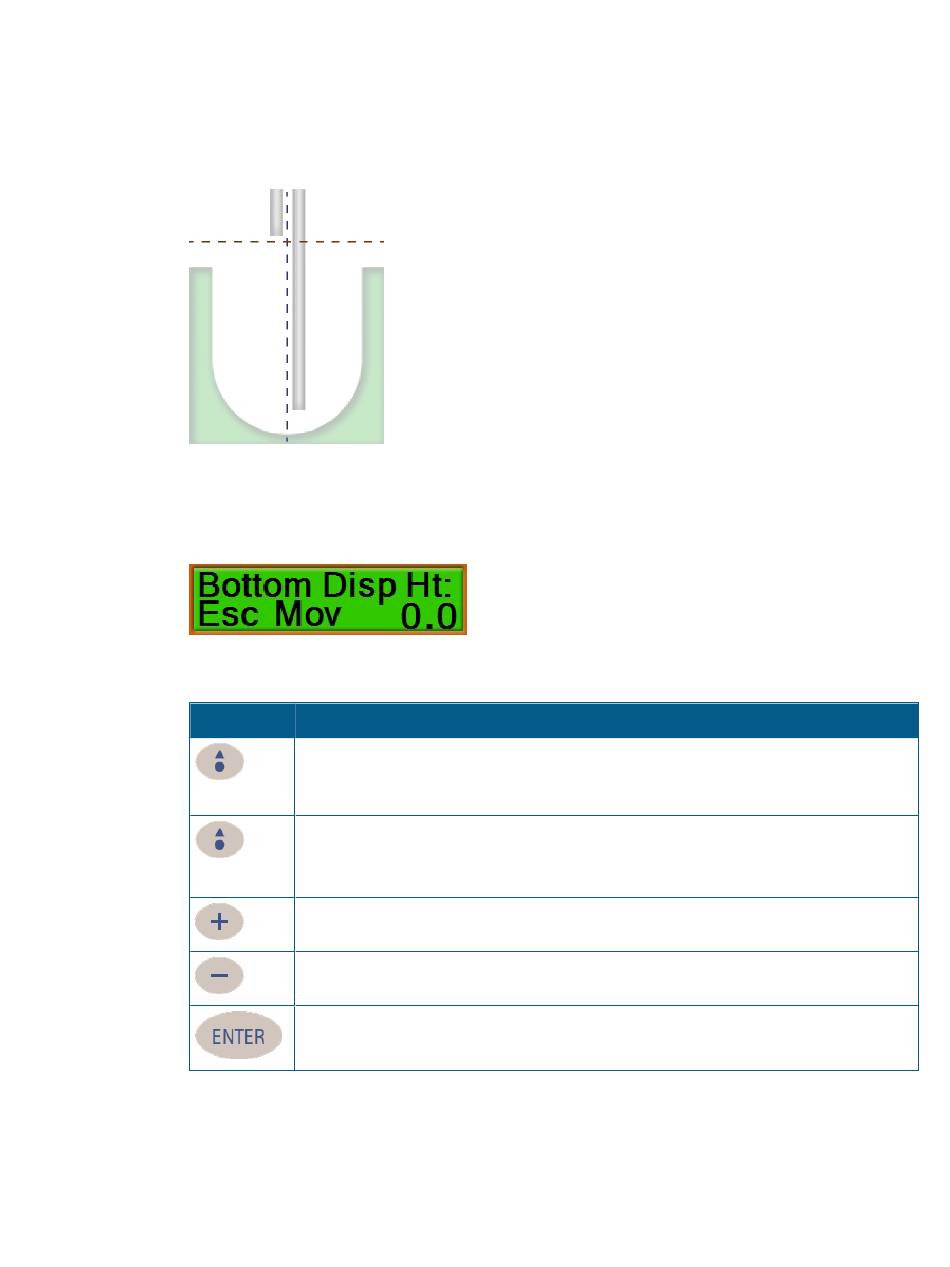

Figure 7-16: Bottom dispense height
You can define the bottom dispense height by editing the offset value, or by using the
"teach-in" method.
Figure 7-17: The Bottom Dispense Height prompt
Table 7-14: Actions of Control Panel Buttons
Button
On the left
On the right
5032022 C
Action
Press this button to end the process and return to Define Plate without saving any
changes. See Defining a Microplate Type on page
Press this button to move the microplate to the currently saved bottom dispense
position and switch to "teach-in" mode. See
page 92.
Press this button to increase the offset value by 0.1 mm to a maximum of 18.8 mm.
Press this button to decrease the offset value by 0.1 mm to a minimum of 0.0 mm.
Press this button to accept the displayed offset value and then define the overflow
dispense height. See Define the Overflow Dispense Height on page
Chapter 7: Defining a Microplate Type
77.
Teach-In the Bottom Dispense Height on
93.
91
