To replace the manifold:
1. Open the clear cover.
2. Remove the dispense tube from the blue connector on the manifold.
3. Make sure that the dispense tube remains in the pinch valve on the top of the
instrument

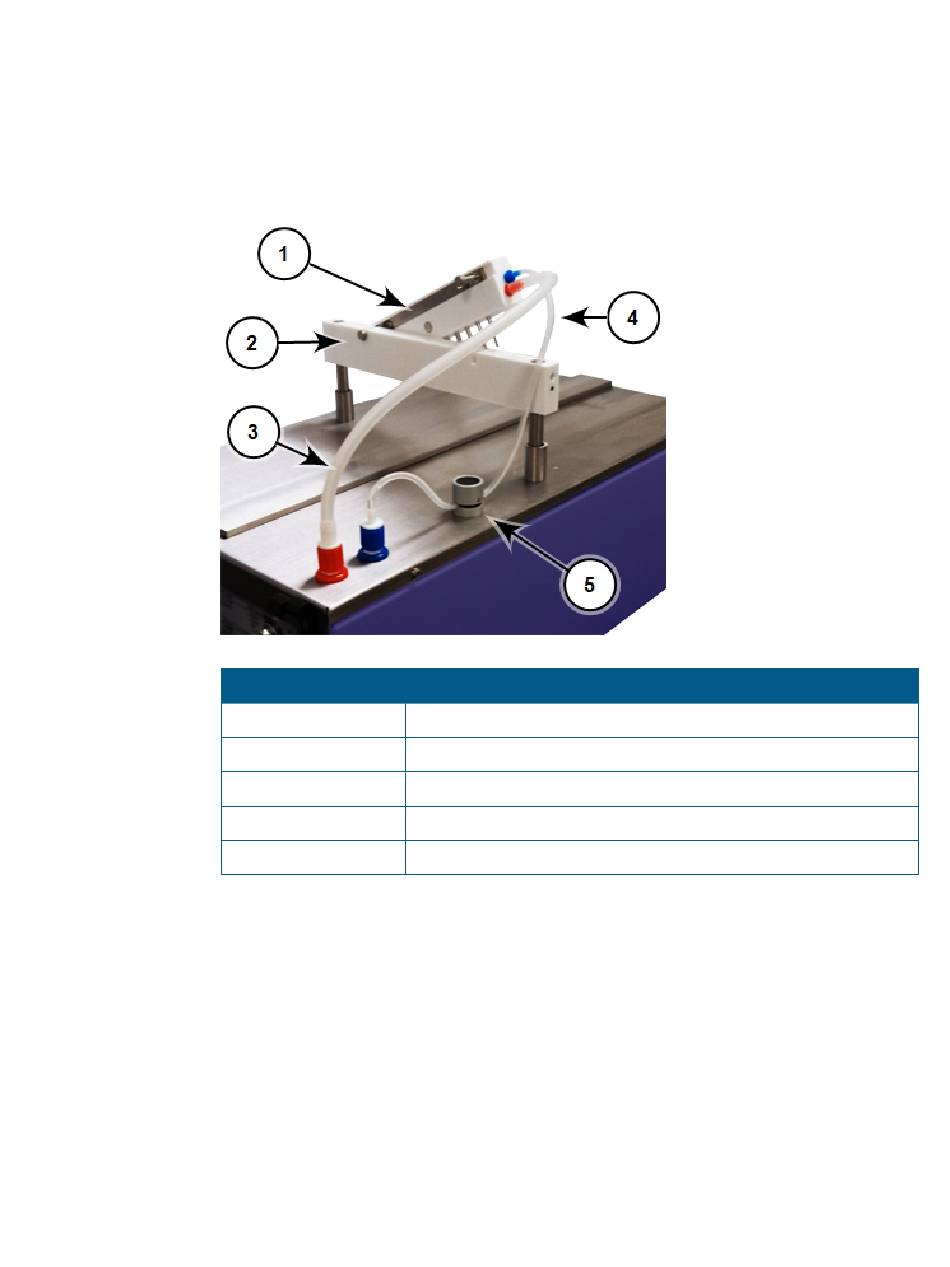

Figure 9-1: Manifold and Hydraulic Tubing
Item
1
2
3
4
5
4. Remove the aspiration tube from the red connector on the manifold.
5. Lift the manifold off the horizontal manifold holder and set the manifold aside.
5032022 C
Description
Manifold
Manifold holder
Aspiration tubing
Dispense tubing
Pinch valve
