Selecting the Installed Manifold
This option is very important to let the software know the size of the manifold that is
installed on the instrument. A procedure will not run if a different manifold is defined here
than the size defined for the procedure.
There are three manifolds available for the MultiWash+ Microplate Washer.
The standard 8-channel manifold works with 96-well plates in portrait orientation.
The optional 12-channel manifold works with 96-well plates in landscape orientation.
The optional 16-channel manifold works with 384-well plates in portrait orientation.

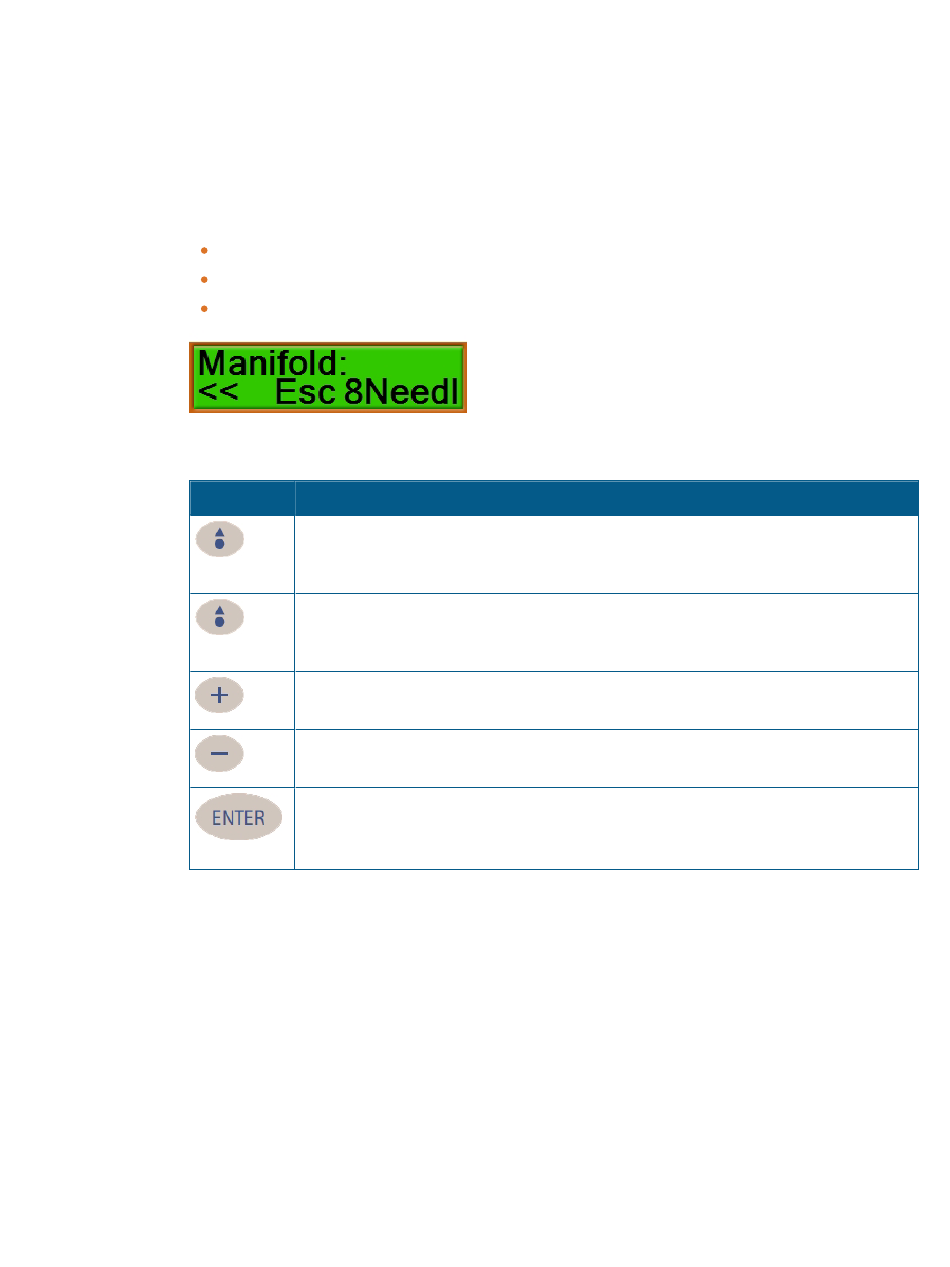

Figure 8-3: The Manifold option
Table 8-3: Actions of Control Panel Buttons
Button
On the left
On the right
5032022 C
Action
Press this button to return to Language. See
on page 114.
Press this button to return to Setup. See
113.
Press this button to scroll forward through the list of available manifolds: 8Needle,
12Needle, or 16Needle
Press this button to scroll backward through the list of available manifolds: 16Needle,
12Needle, or 8Needle
Press this button to select the manifold and then define the number of wash bottles
connected to the instrument. See
page 116.
Chapter 8: Selecting Instrument Set Up Options
Selecting the Language for the Display
Selecting Instrument Set Up Options on page
Selecting the Number of Installed Wash Bottles on
