Removing the Manifold and Fluidics Tubing

There are three manifolds available for the MultiWash+ Microplate Washer.
The standard 8-channel manifold works with 96-well plates in portrait orientation.
The optional 12-channel manifold works with 96-well plates in landscape orientation.
The optional 16-channel manifold works with 384-well plates in portrait orientation.
The instrument comes with the standard 8-channel manifold. The fluidics tubing for
connecting the manifold to the instrument is packed with the standard manifold. Other
manifolds are packed separately.
To remove the manifold and fluidics tubing:
1. Open the clear cover.
2. Remove the dispense tubing from the blue connector on the manifold.

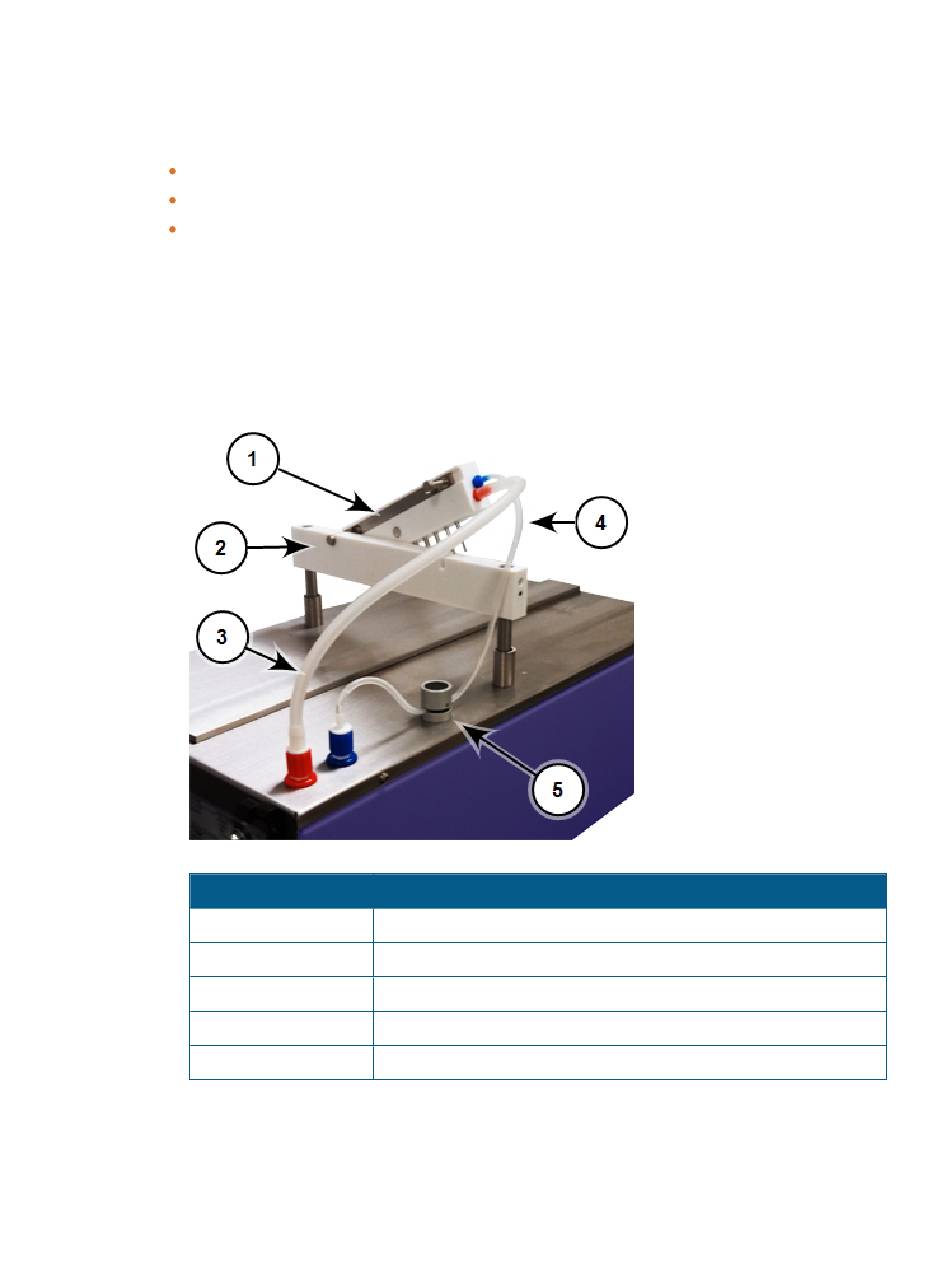

Figure 9-10: Manifold and Hydraulic Tubing
Item
1
2
3
4
5
136
Description
Manifold
Manifold holder
Aspiration tubing
Dispense tubing
Pinch valve
5032022 C
