6. Place the new manifold on the horizontal manifold holder with the needles pointing
down and the mounting pins pointing to the rear of the instrument.

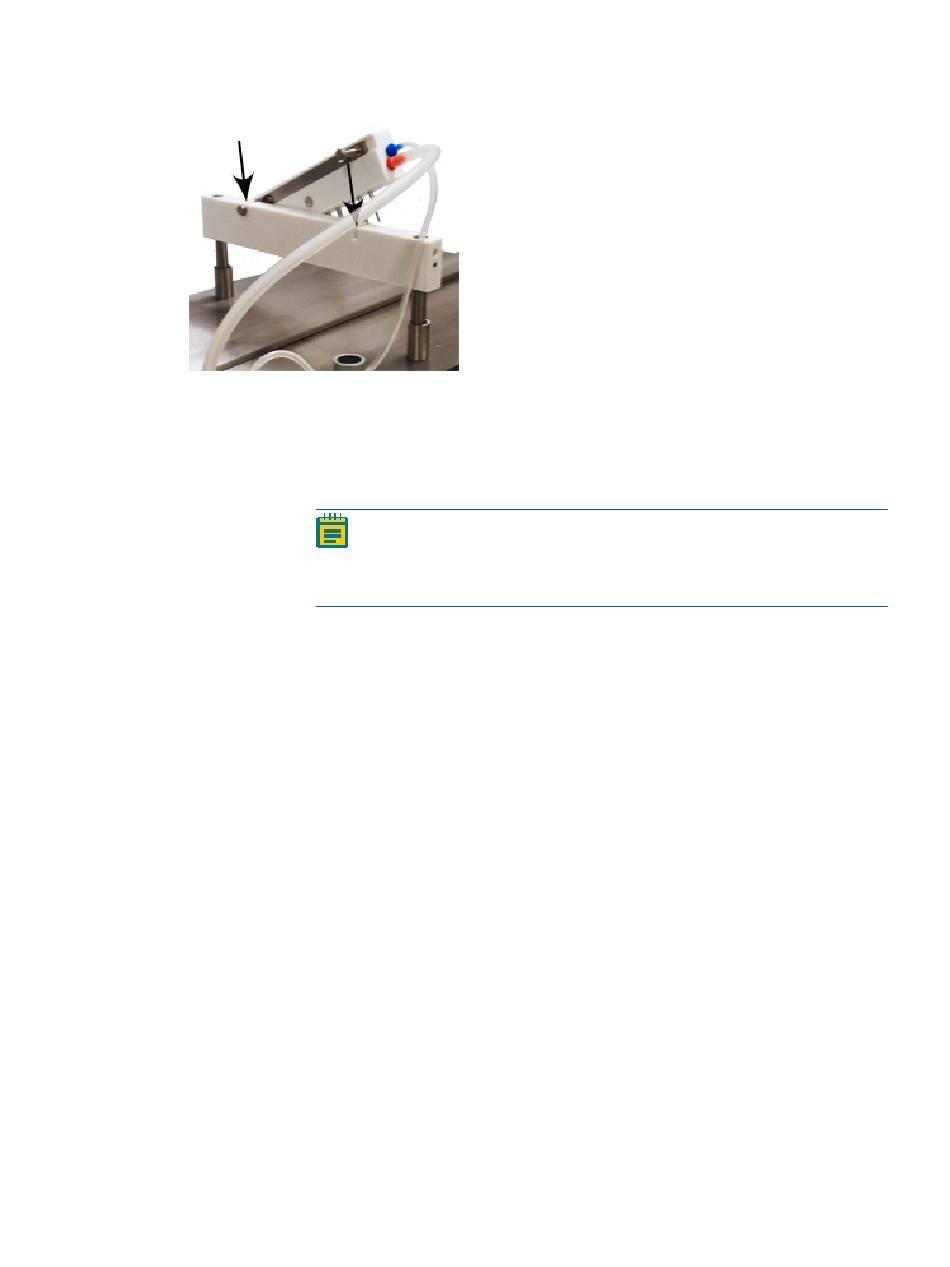

Figure 9-2: Placing the Manifold on the Manifold Holder
7. Set the mounting pins into the slots on the top of the manifold holder.
8. Slide the aspiration tube onto the red connector on the manifold.
9. Slide the dispense tube onto the blue connector on the manifold.
10. Close the clear cover.
After you start the instrument, make sure that the correct manifold is selected in the set up
options. See
128
Note: Make sure that there is enough slack in the dispense tubing
on both sides of the pinch valve to allow for vertical movement of
the manifold and to allow fluid to flow freely through the tubing.
Selecting the Installed Manifold on page 115.
