EXPLANATION OF COMPONENTS
1.

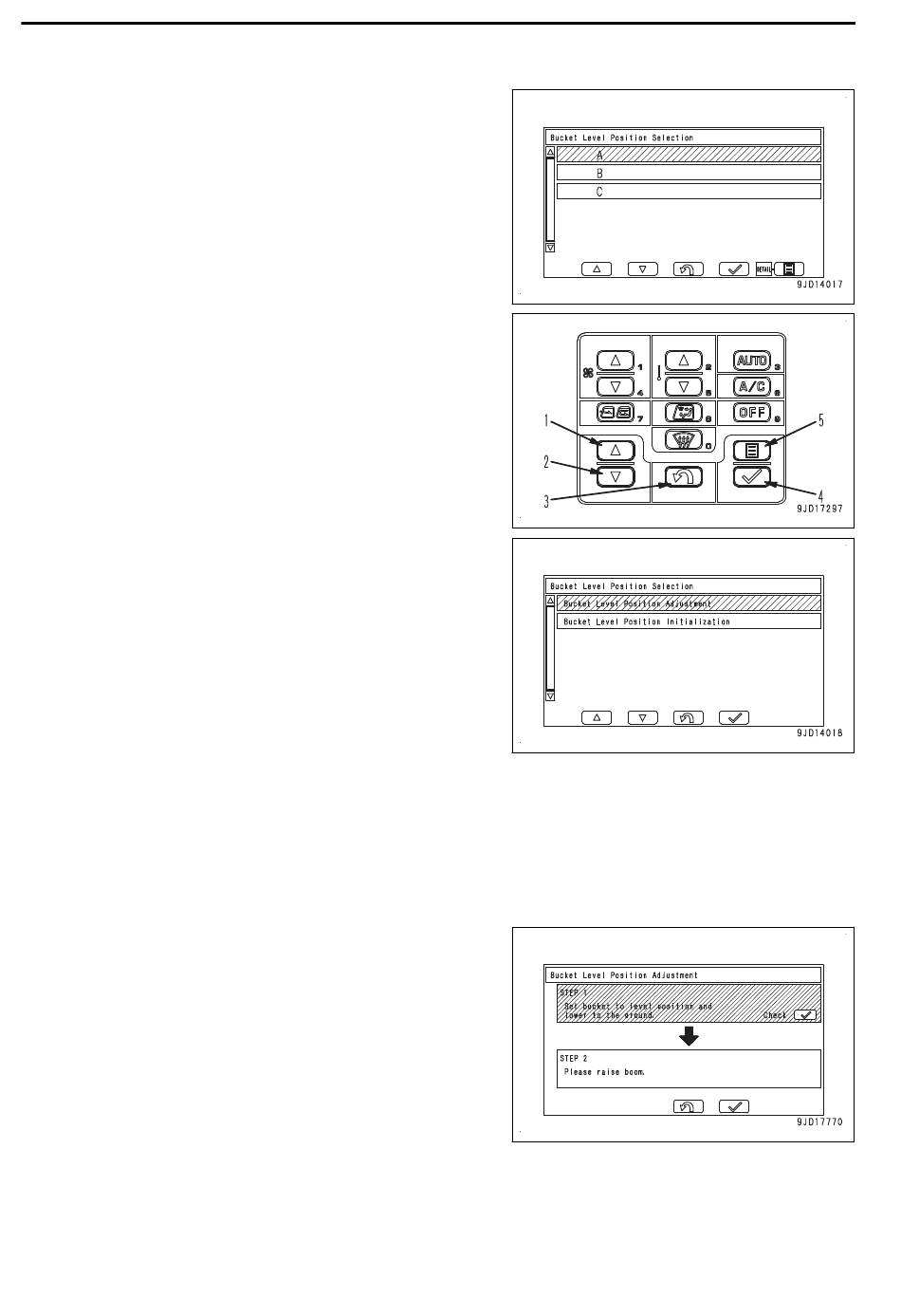

Select a type of bucket whose level position is to be ad-
justed from the "Bucket Level Position Selection" screen,
then press menu switch (5).
2.
"Bucket Level Position Selection" screen is switched.
Select the "Bucket Level Position Adjustment", press EN-
TER switch (4), and then the adjustment mode starts.
You can perform the following operations with switches (1)
to (4) on the switch panel.
(1) UP switch
Moves to the previous item (1 line above).
When on the first line, it moves to the last line.
(2) DOWN switch
Moves to the next item (1 line below).
When on the last line, it moves to the first line.
(3) RETURN switch
The screen returns to "Bucket Level Position Selection" screen.
(4) ENTER switch
The screen changes to "Bucket Level Position Adjustment", and then the adjustment mode starts.
3.
According to the screen instructions, set the bucket bottom
horizontal, and lower the boom to the ground.
REMARK
When canceling the adjustment, press RETURN switch
(3).
4.
Press ENTER switch (4).
The screen switches to STEP2.
