5Ap1181.1043-000 - B&R Automation Panel 1000 User Manual

Technical data

4.2.1.9 5AP1181.1043-000

4.2.1.9.1 General information
• Panel for AP1000, PPC900, PPC2100, PPC2200 or PPC3100
• 10.4" TFT VGA color display
• Single-touch (analog resistive)
• 38 function keys and 20 system keys
• Front USB interface
• Control cabinet installation

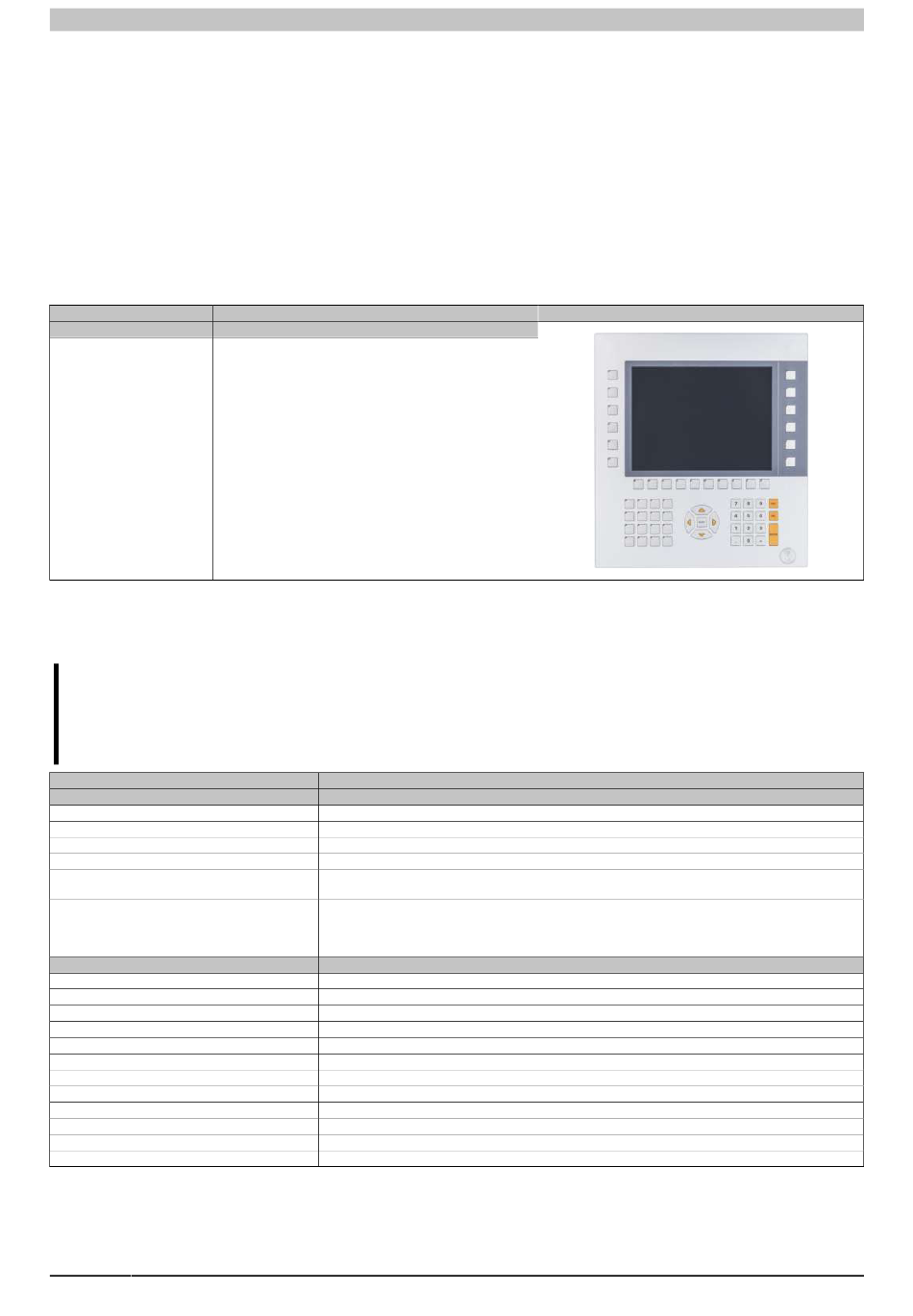

4.2.1.9.2 Order data
Model number Short description
Panels
5AP1181.1043-000 Automation Panel 10.4" VGA TFT - 640 x 480 pixels (4:3) -
Single-touch (analog resistive) - Control cabinet installation -
Portrait format - Front USB - 38 function keys and 20 sys-
tem keys - For PPC900/PPC2100/PPC3100/PPC2200 - For link
modules - Compatible with 5PP581.1043-00, 5AP981.1043-01,
5PC781.1043-00
4.2.1.9.3 Technical data
Information:
The following specified characteristic data, features and limit values are only valid for these individual
components and may differ from those of the complete system. The data specified for the complete
system applies to the complete system in which this individual component is used, for example.
Model number
General information
B&R ID code
Certifications
CE
EAC
UL
HazLoc
Display
Type
Diagonal
Colors
Resolution
Contrast
Viewing angles
Horizontal
Vertical
Backlight
Type
Brightness (dimmable)
Half-brightness time
2)
78
Table 19: 5AP1181.1043-000 - Order data
Table 20: 5AP1181.1043-000 - Technical data
5AP1181.1043-000
0xE7AF
Yes
Yes
cULus E115267
Industrial control equipment
cULus HazLoc E180196
Industrial control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T4
TFT color
10.4"
16.7 million
VGA, 640 x 480 pixels
900:1
Direction R = 80° / Direction L = 80°
Direction U = 80° / Direction D = 80°
LED
Typ. 22.5 to 450 cd/m²
70,000 h
Automation Panel 1000 user's manual V2.00
Figure
1)
