4.1.3.2 Installation diagrams

Information:
When installing the Automation Panel 1000, spacing for air circulation and additional free space for
operating and servicing the device must be taken into account.
AP1000 panels with retaining clips - Installation diagrams

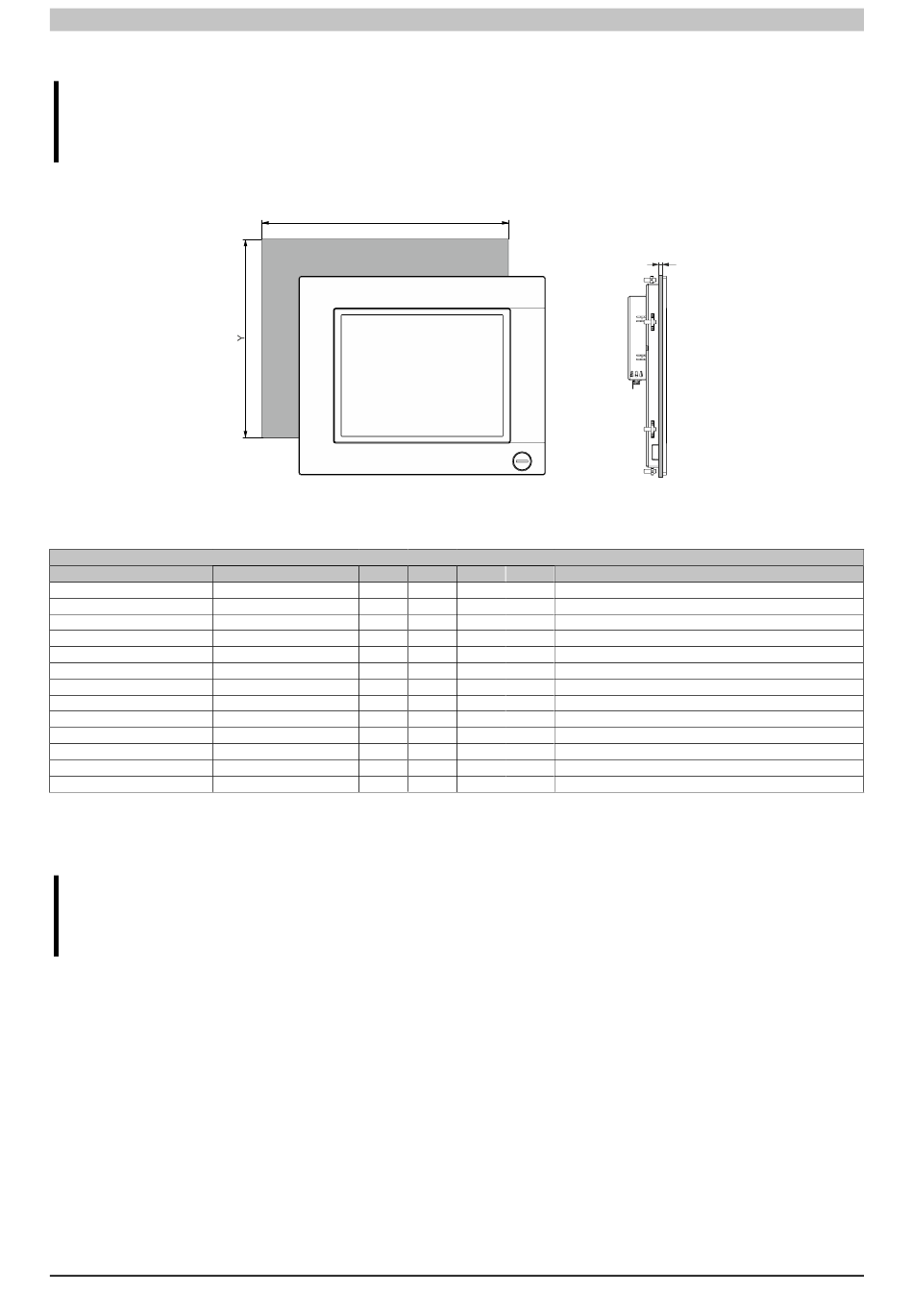

Figure 3: Automation Panel 1000 with retaining clips - Installation diagram
The cutout tolerances are +0 mm / -0.5 mm.
Type Model number
5.7" single-touch 5AP1120.0573-000
5.7" keys 5AP1151.0573-000
7.0" single-touch 5AP1120.0702-000
7.0" multi-touch 5AP1130.0702-000
10.1" single-touch 5AP1120.101E-000
10.1" multi-touch 5AP1130.101E-000
10.4" single-touch 5AP1120.1043-000
10.4" single-touch with keys 5AP1180.1043-000
12.1" single-touch 5AP1120.121E-000
12.1" multi-touch 5AP1130.121E-000
15.6" single-touch 5AP1120.156B-000
15.6" multi-touch 5AP1130.156C-000
18.5" multi-touch 5AP1130.185C-000
Dimension "Z" describes the thickness of the wall or control cabinet plate.
A 2.5 mm hex screwdriver is needed to tighten and remove the screw on the retaining clips. The maximum tightening
torque of the retaining clips is 1 Nm.
Information:
A minimum circumferential distance of 30 mm must be maintained in order to enable installation with
retaining clips.
Automation Panel 1000 user's manual V2.00
X
Panels
X Y Z min. Z max.
199 143 1 8
199 232 1 8
199 143 1 8
199 143 1 8
268 180 1 6
268 180 1 6
303 243 1 10
303 243 1 10
313 210.5 1 6
313 210.5 1 6
403 247.5 1 6
403 247.5 1 6
464 284 1 6
Z
Number of retaining clips
4
6
4
4
8
8
8
8
10
10
10
10
10
