5Ap1120.1906-000 - B&R Automation Panel 1000 User Manual

Technical data

4.2.1.20 5AP1120.1906-000

4.2.1.20.1 General information
• Panel for AP1000, PPC900, PPC2100, PPC2200 or PPC3100
• 19.0" TFT SXGA color display
• Single-touch (analog resistive)
• Front USB interface
• Control cabinet installation

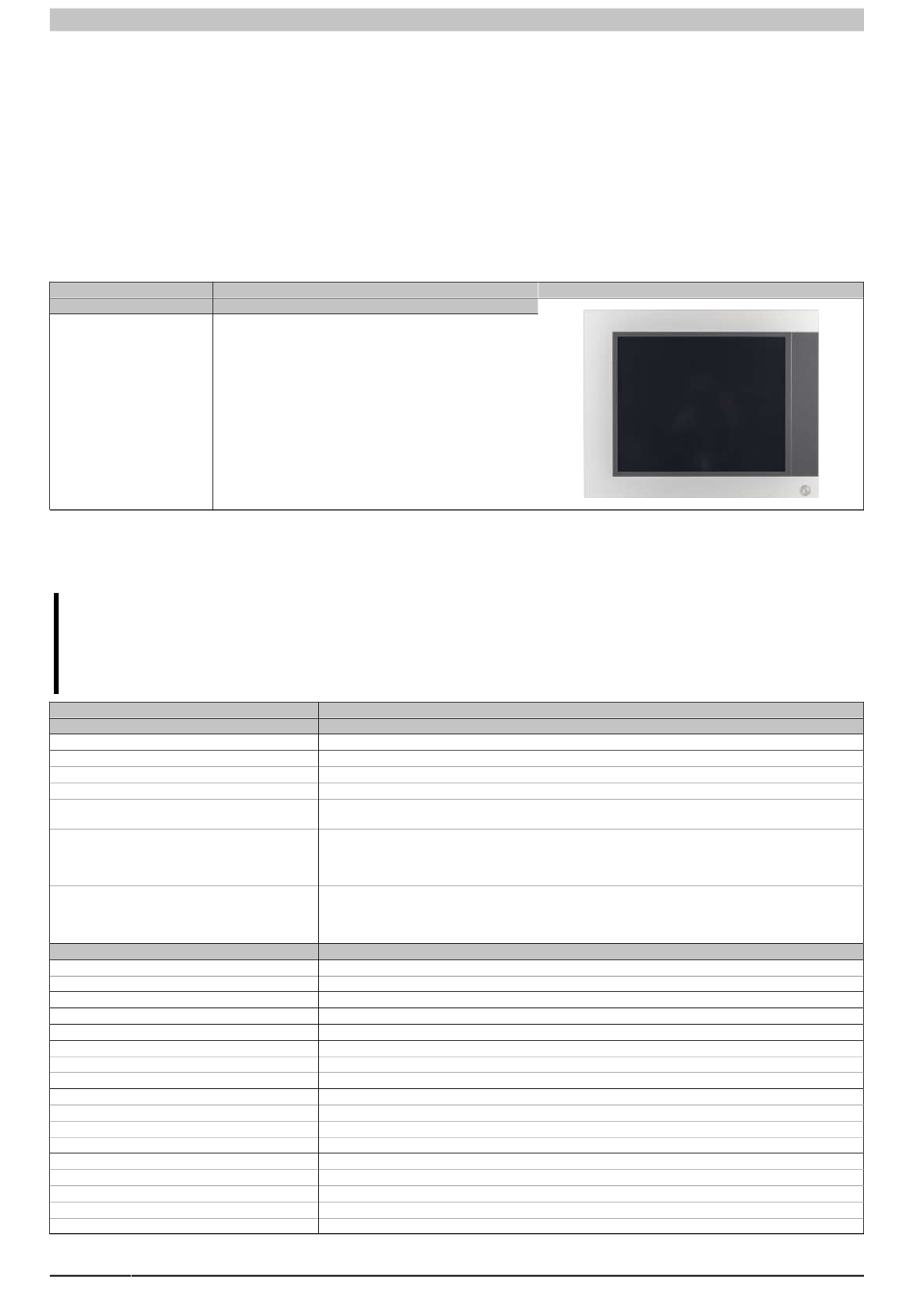

4.2.1.20.2 Order data
Model number Short description
Panels
5AP1120.1906-000 Automation Panel 19.0" SXGA TFT - 1280 x 1024 pixels
(5:4) - Single-touch (analog resistive) - Control cabinet in-
stallation - Landscape format - Front USB - For PPC900/
PPC2100/PPC3100/PPC2200 - For link modules - Compatible
with 5AP920.1906-01, 5PC720.1906-00, 5PC820.1906-00
4.2.1.20.3 Technical data
Information:
The following specified characteristic data, features and limit values are only valid for these individual
components and may differ from those of the complete system. The data specified for the complete
system applies to the complete system in which this individual component is used, for example.
Model number
General information
B&R ID code
Certifications
CE
EAC
UL
HazLoc
DNV GL
Display
Type
Diagonal
Colors
Resolution
Contrast
Viewing angles
Horizontal
Vertical
Backlight
Type
Brightness (dimmable)
Half-brightness time
3)
Touch screen
4)
Type
Technology
Controller
Transmittance
106
Table 41: 5AP1120.1906-000 - Order data
Table 42: 5AP1120.1906-000 - Technical data
5AP1120.1906-000
0xE7BE
Yes
Yes
cULus E115267
Industrial control equipment
cULus HazLoc E180196
Industrial control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T4
Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: A (0.7 g)
EMC: B (bridge and open deck)
TFT color
19.0"
16.2 million
SXGA, 1280 x 1024 pixels
1500:1
Direction R = 85° / Direction L = 85°
Direction U = 85° / Direction D = 85°
LED
Typ. 35 to 350 cd/m²
70,000 h
AMT
Analog, resistive
B&R, serial, 12-bit
81% ±3%
Automation Panel 1000 user's manual V2.00
Figure
1)
2)
