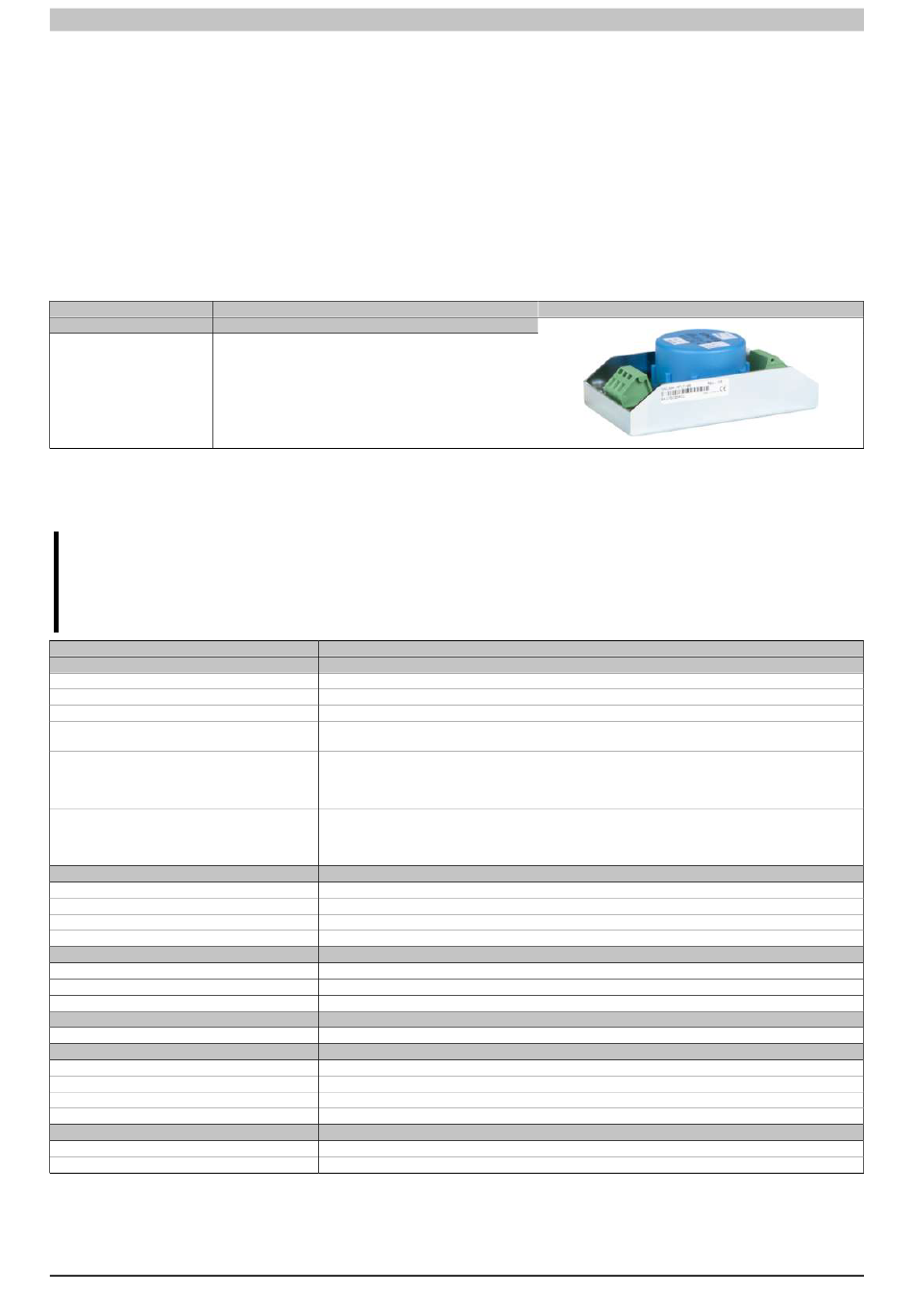

9.5 Line filter

9.5.1 5AC804.MFLT-00

9.5.1.1 General information

Line filter 5AC804.MFLT-00 may be necessary to satisfy maritime requirements regarding conducted disturbances
in supply lines in accordance with the GL (Germanischer Lloyd) or DNVGL.
The line filter should be installed as close to the end device as possible; the supply line from the end device to the
line filter should be kept as short as possible.

9.5.1.2 Order data

Model number Short description
Accessories
5AC804.MFLT-00 Line filter

9.5.1.3 Technical data

Information:
The following specified characteristic data, features and limit values are only valid for this accessory
and may differ from those of the complete system. The data specified for the complete system applies
to the complete system in which this accessory is installed, for example.
Model number
General information
Certifications
CE
EAC
UL
HazLoc
DNV GL
Terminal block
Connection cross section
With wire end sleeves
Flexible
Inflexible
Electrical properties
Nominal voltage
Nominal current
Overvoltage category per EN 61131-2
Operating conditions
Pollution degree per EN 61131-2
Ambient conditions
Temperature
Operation
Storage
Transport
Mechanical properties
Housing
Material
Automation Panel 1000 user's manual V2.00
Table 72: 5AC804.MFLT-00 - Order data
Table 73: 5AC804.MFLT-00 - Technical data
5AC804.MFLT-00
Yes
Product family certification
cULus E115267
Industrial control equipment
cULus HazLoc E180196
Industrial control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T4
Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: A (0.7 g)
EMC: B (bridge and open deck)
1.5 mm²
0.2 to 1.5 mm²
0.2 to 2.5 mm²
24 VDC -25% / +30%, SELV
3)
8 A
II
Pollution degree 2
-25 to 65°C
-25 to 65°C
-25 to 65°C
Galvanized plate
Accessories
Figure
1)
2)
