REQUIRED TOOLS

Calibration Tools

2.1.

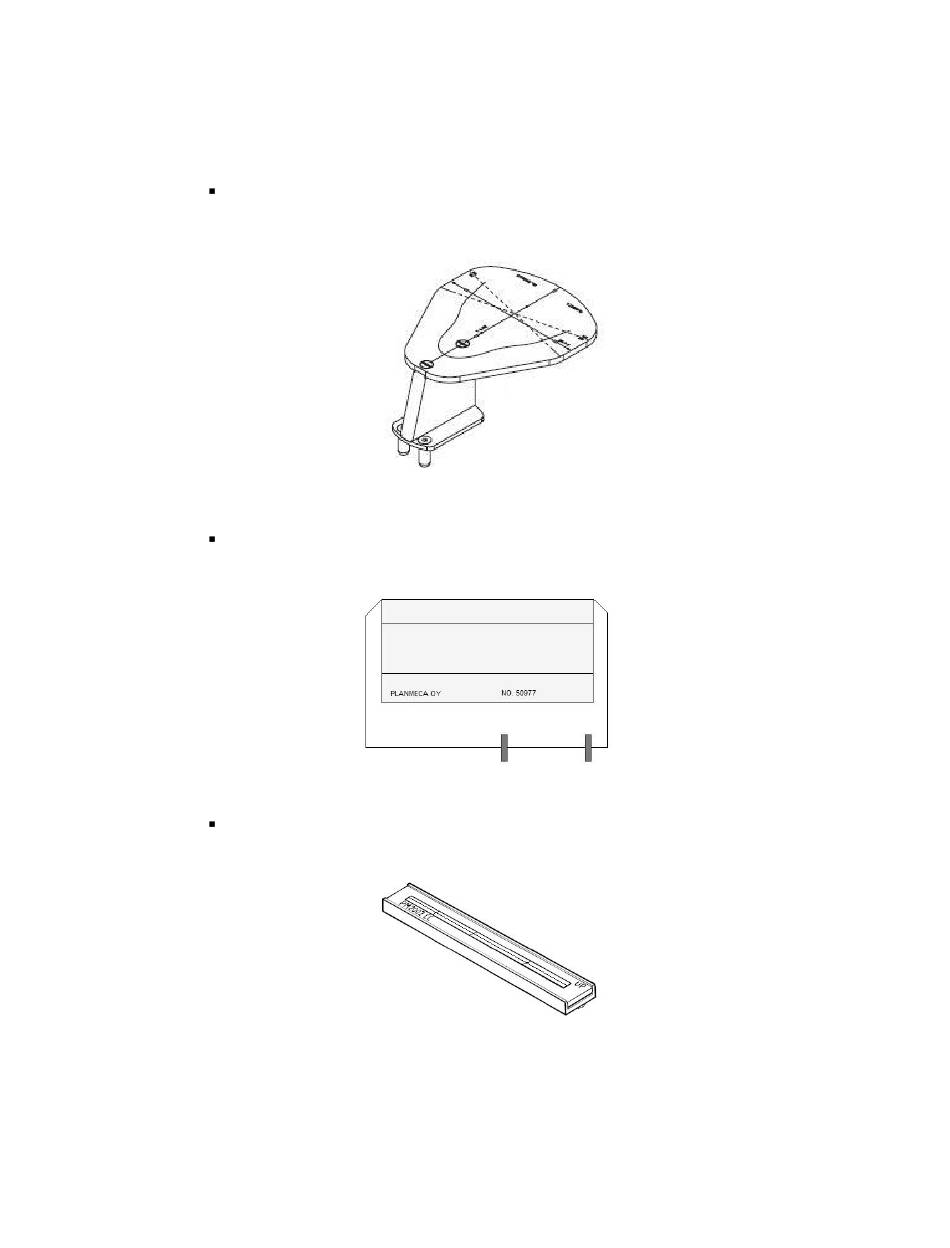

Ball phantom (part number 10004011) used for checking the position of the
Patient positioning mechanism and the Patient positioning lights. (Figure 1)
Frankfort plane alignment tool (part number 50977) used with the ball
phantom for checking the position of the Frankfort plane light. (Figure 2)
Beam alignment tool, fluorescent screen, (part number 50972) used for
checking the position of the x-ray beam. (Figure 3)
Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Figure 1
Figure 2
Figure 3
