Ceph Mode Beam Position - Planmeca ProMax Pan/Ceph Calibration Manual

3.2

Ceph mode beam position (61.6)

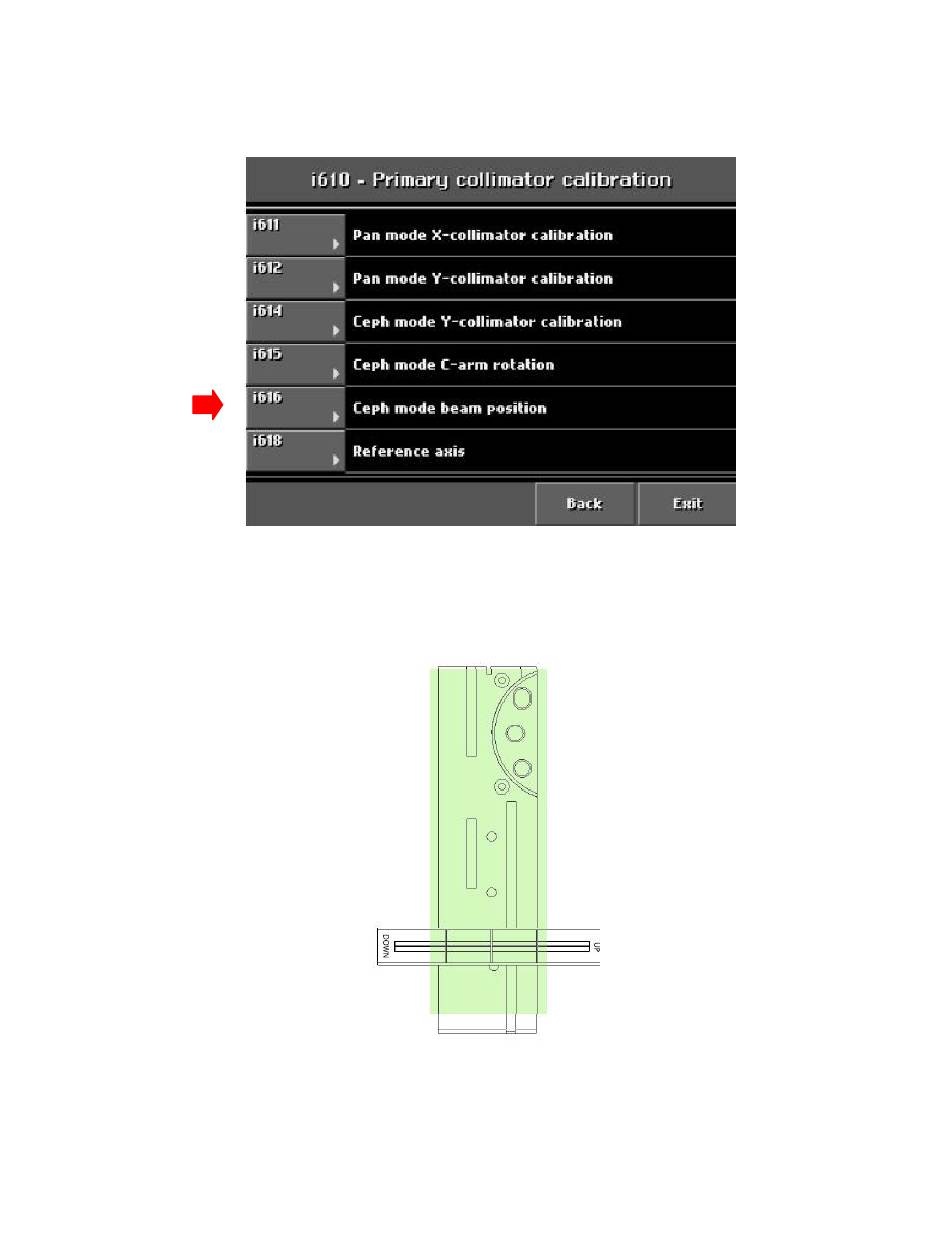

Press Ceph mode beam position. (Figure 135)
Press Test and take an exposure. Beam should cover the center of the
fluorescent screen with a bit of overlap on either side of the center lines.
(Figure 136)
Adjust if the beam is off.
Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Figure 135
Figure 136
