Position Sensor Calibration (Pots)
NOTE: If the ball phantom image is good, then skip this section.

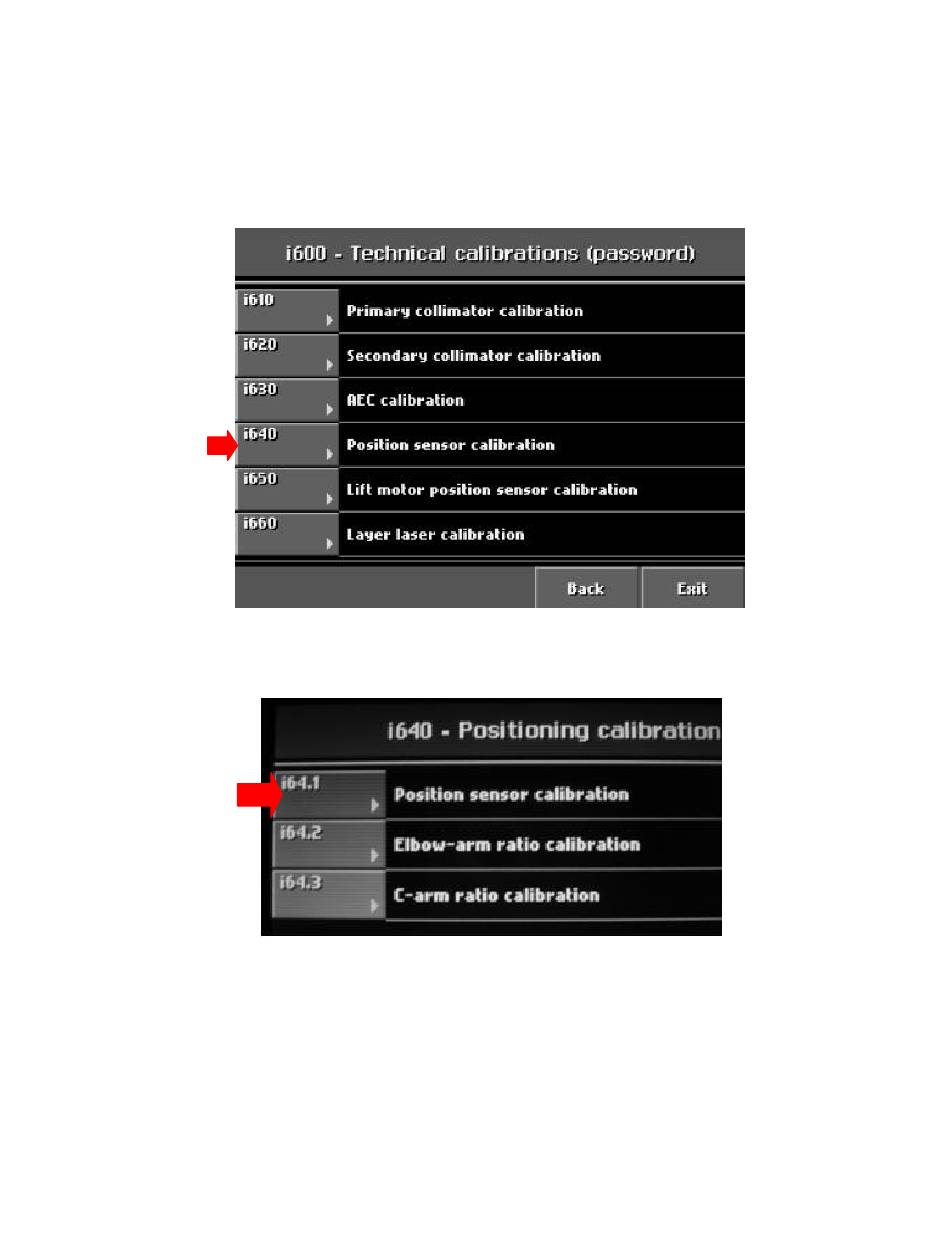

Press i then select Technical Calibration (60.0) then select Position Sensor
Calibration. (64.0). (Figure 94)
Press Position Sensor (64.1) (Figure 95)
Printed copies of this document are considered uncontrolled.
22811.20.Rev001
07.31.2018
Figure 94
Figure 95
- 54 -
54
