Tube head

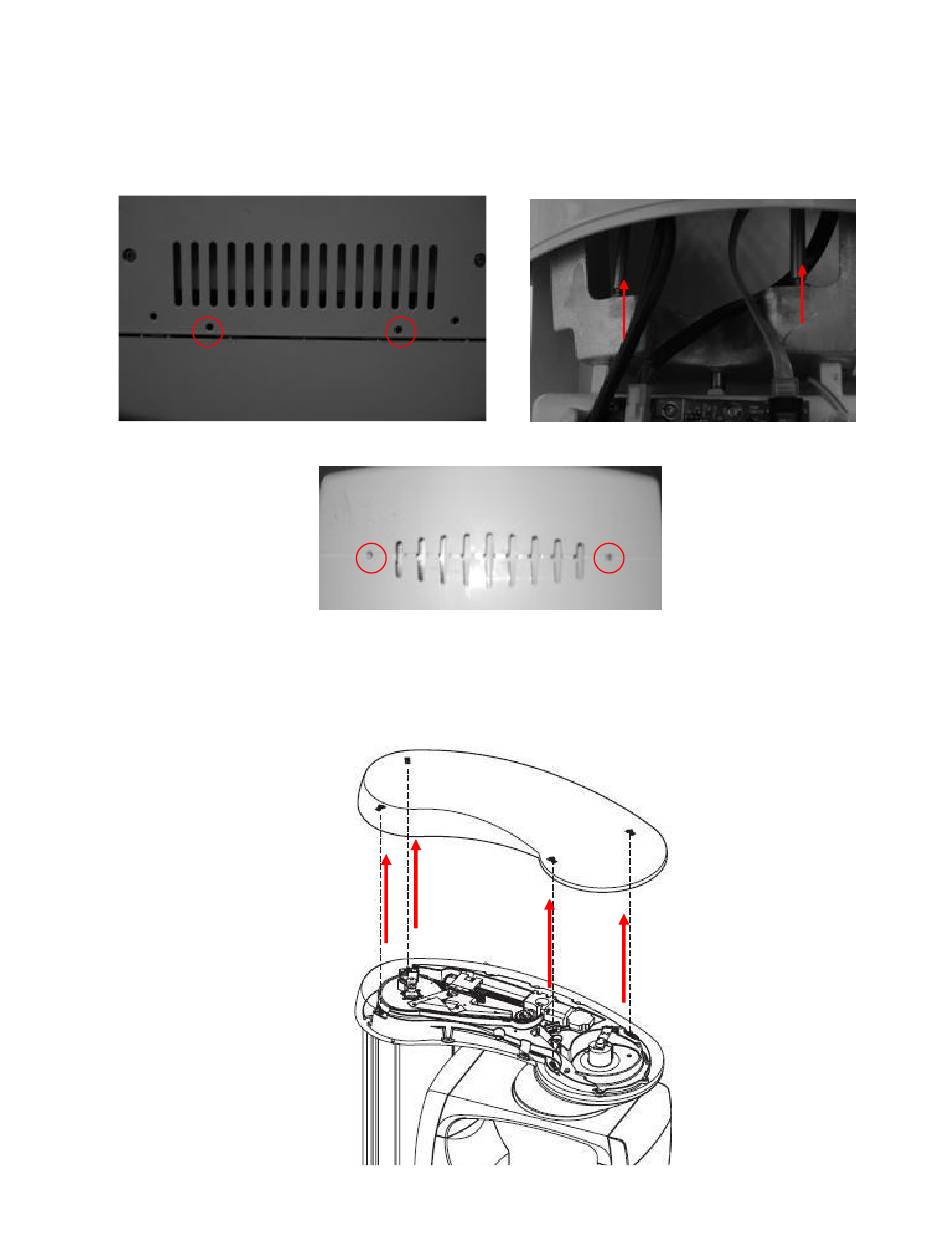

Unscrew the top of the front tubehead cover with a 3mm allen (Figure 9a-b) and
unscrew the bottom with a 2.5mm allen (Figure 9c) and remove the front cover.
3

Shoulder

Pull up on the shoulder cover. (Figure 10)
Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Top
Figure 9a
Figure 10
Bottom
Figure 9c
- 12 -
What is unscrewed
Figure 9b
