Kv/Ma Setting For Panoramic; Changing Binnings - Planmeca ProMax Pan/Ceph Calibration Manual

1.1.b ON

1.2 kV/mA setting for Panoramic

1.3 Changing Binnings

Click Settings and select Binnings then select the appropriate binning.
(Figure 55)
Press Ready on the touch screen. Take an Exposure.
NOTE: Make sure that the correct kV/mA are being used for each binning.
The Image will come out as showing a grey box with a black stripe in the
center. (Figure 56)
NOTE: There is no need to close and re-open Dimax3 Tool before selecting other binnings.
Follow 1.5.c for checking the other binnings.
The calibration files are automatically saved. Close Dimax3 Tool.
Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Press the smile again. (See Figure 53) Then Press, all the arrows at the
bottom and side, turning each from red to white.
Binnings
4x4
3x3
2x2

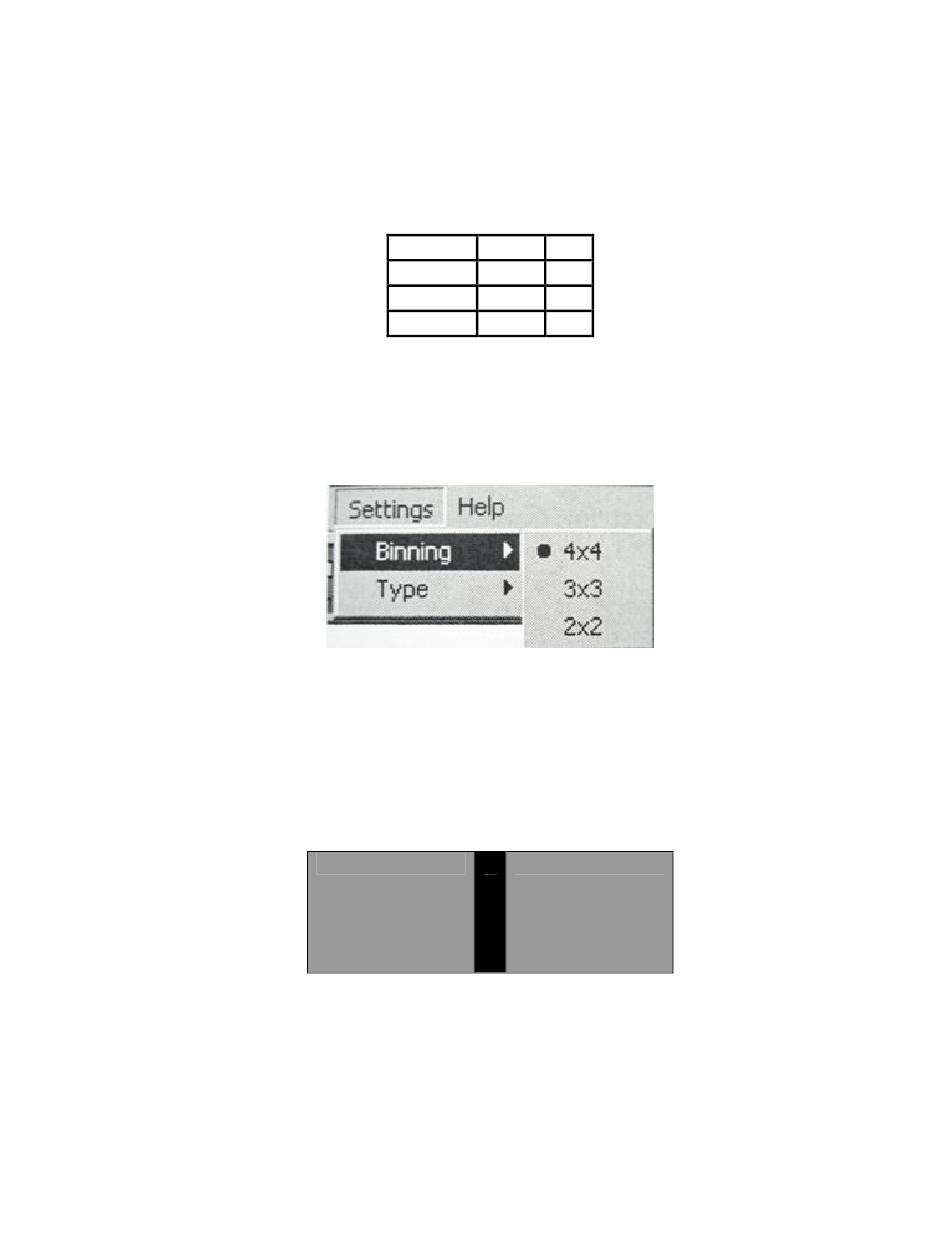

Figure 55
Figure 56
- 37 -
kV mA
54 1
60 1
60 2
37
