Hand Tools - Planmeca ProMax Pan/Ceph Calibration Manual

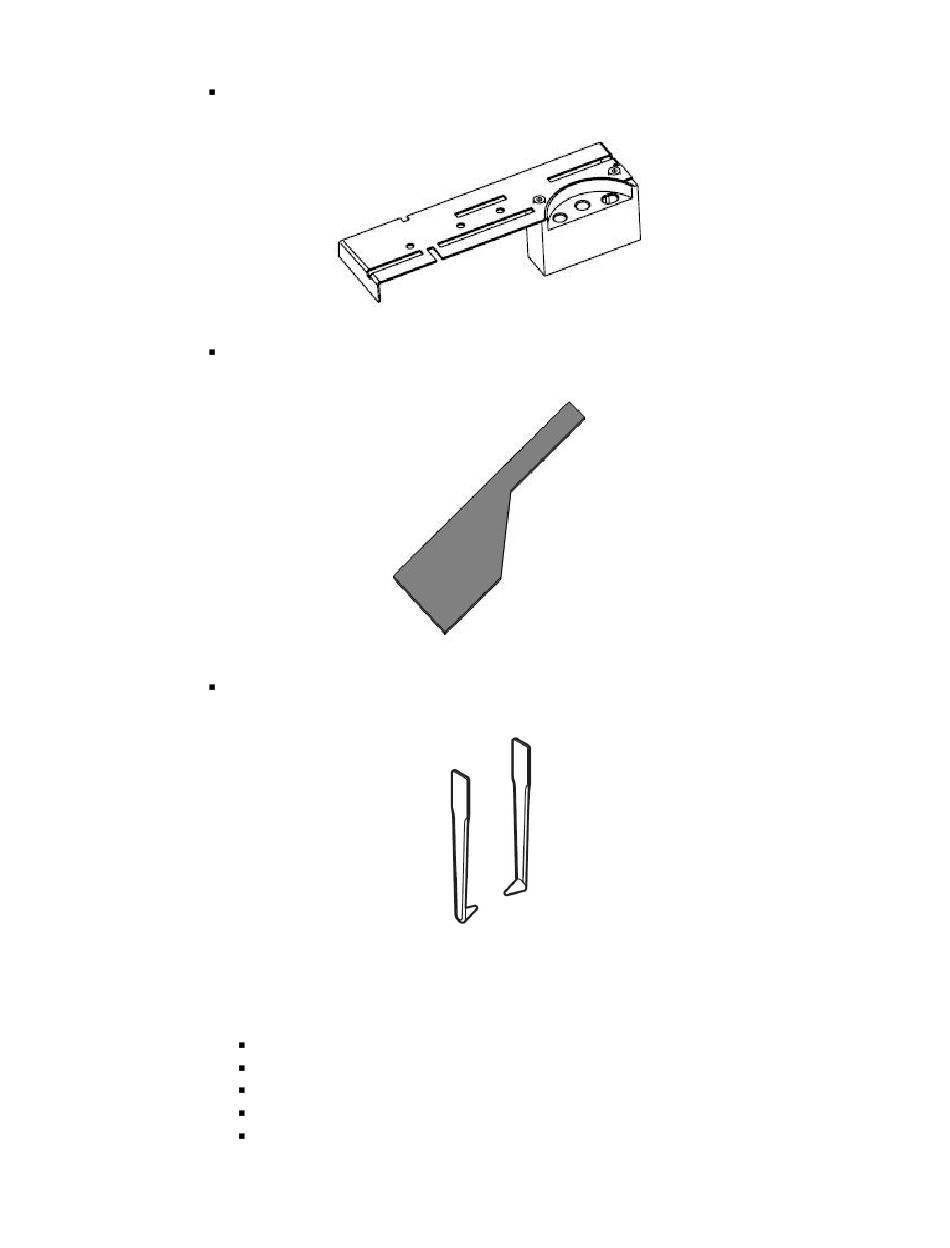

Sensor head alignment tool (part number 10002699) used for checking the
beam alignment. (Figure 4)
Cephalostat calibration tool, hatchet, (part number 10004246). For
calibrating the digital cephalostat. (Figure 5)
Left and Right ear posts (part number 651003, 651005) used for aligning the
ball and ring on the cephalometric arm. (Figure 6)

2.2 Hand Tools

Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Figure 4
Figure 5
Figure 6
1.5mm allen wrench
2mm allen wrench
2.5mm allen wrench
3mm allen wrench
4mm allen wrench
