Too Right

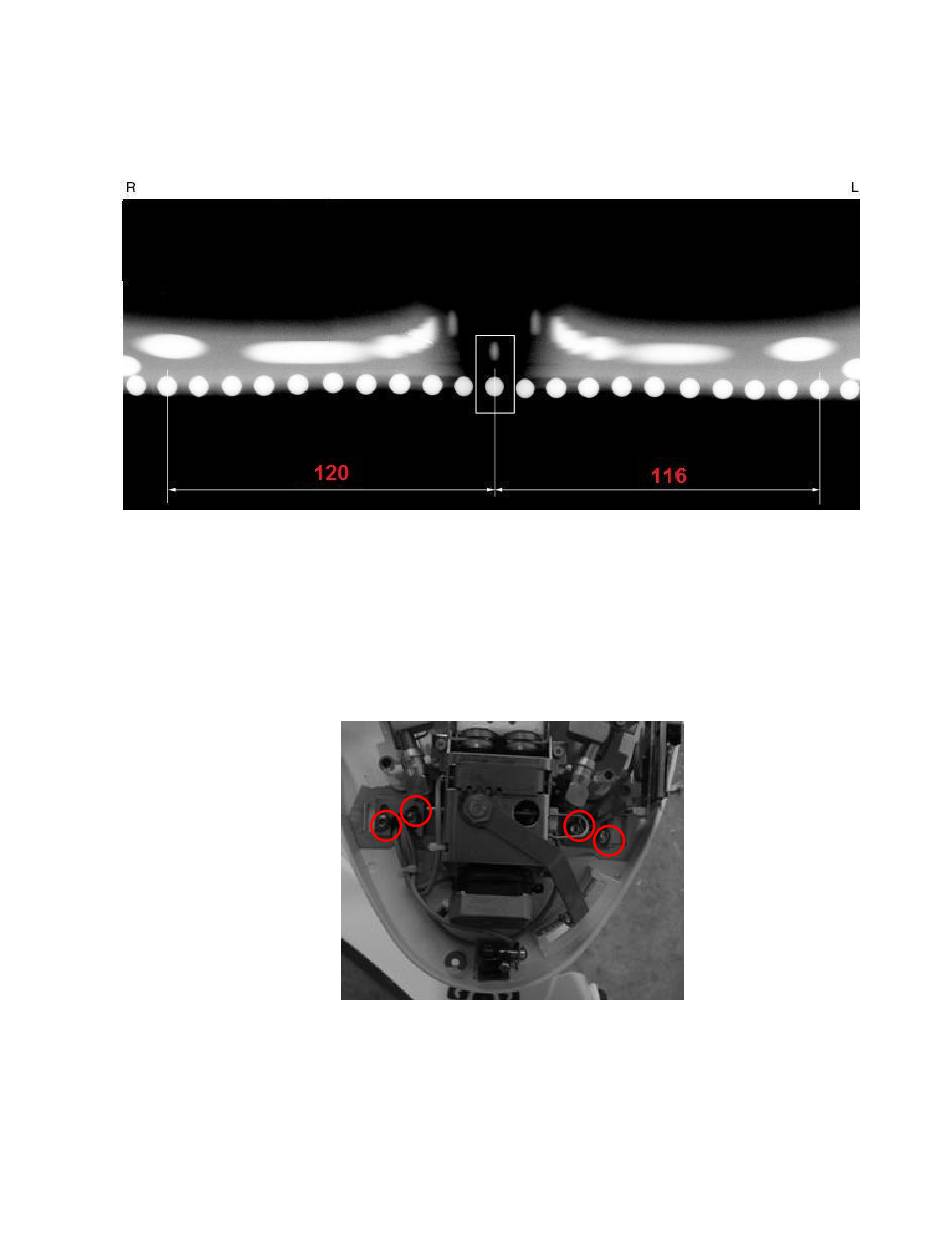

If the distance from the Center Ball to the right is more than the
left, then move the table toward the column. (Figure 84)
Figure 84
Moving the Table
Loosen the four screws on the table with a 4mm allen. (Figure
85)
Figure 85
Physically push or pull the table to the left or right.
