Too Left/Right - Planmeca ProMax Pan/Ceph Calibration Manual

2.1.c.i
Press Test then Done then take another exposure.
Printed copies of this document are considered uncontrolled.
22811.20.Rev001 07.31.2018
Too Left/ Too Right

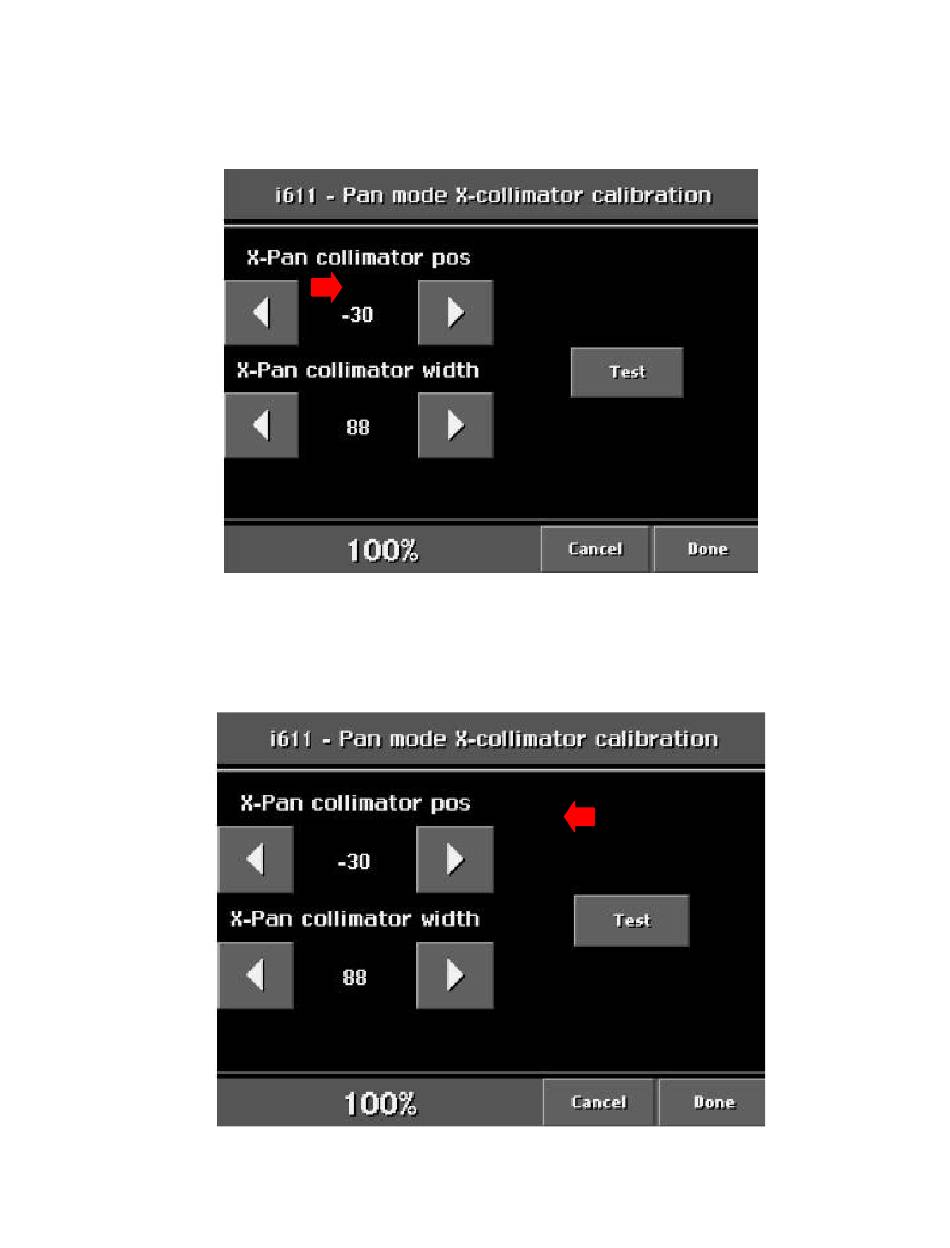

If the shadow ball is too left press the X-Pan collimator pos left
button. (Figure 92)
Figure 92
Press Test then Done then take another exposure.
If the shadow ball is too right then press the X-Pan collimator
post right button. (Figure 93)
Figure 93
- 53 -
53
