11. Appendix

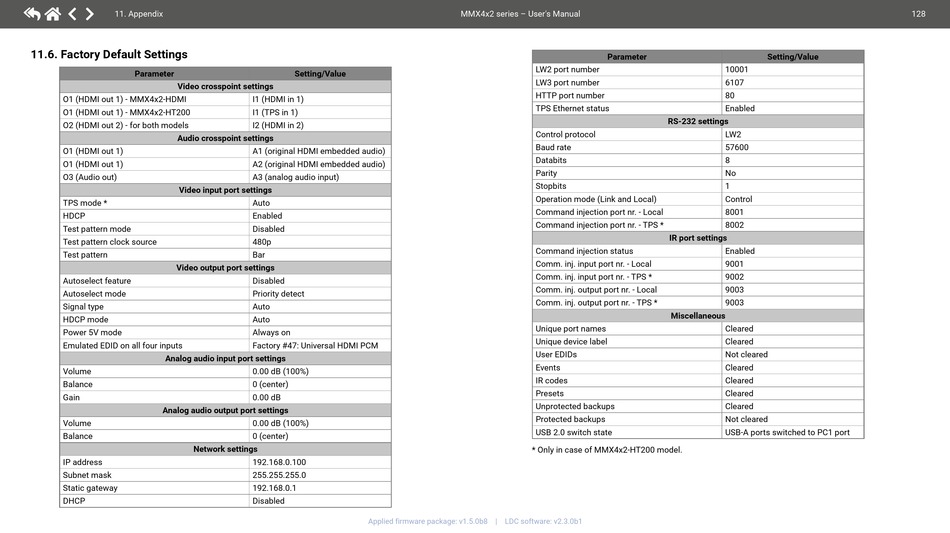

11.6. Factory Default Settings
Parameter
Video crosspoint settings
O1 (HDMI out 1) - MMX4x2-HDMI
O1 (HDMI out 1) - MMX4x2-HT200
O2 (HDMI out 2) - for both models
Audio crosspoint settings
O1 (HDMI out 1)
O1 (HDMI out 1)
O3 (Audio out)
Video input port settings
TPS mode *
HDCP
Test pattern mode
Test pattern clock source
Test pattern
Video output port settings
Autoselect feature
Autoselect mode
Signal type
HDCP mode
Power 5V mode
Emulated EDID on all four inputs
Analog audio input port settings
Volume
Balance
Gain
Analog audio output port settings
Volume
Balance
Network settings
IP address
Subnet mask
Static gateway
DHCP
Setting/Value
I1 (HDMI in 1)
I1 (TPS in 1)
I2 (HDMI in 2)
A1 (original HDMI embedded audio)
A2 (original HDMI embedded audio)
A3 (analog audio input)
Auto
Enabled
Disabled
480p
Bar
Disabled
Priority detect
Auto
Auto
Always on
Factory #47: Universal HDMI PCM
0.00 dB (100%)
0 (center)
0.00 dB
0.00 dB (100%)
0 (center)
192.168.0.100
255.255.255.0
192.168.0.1
Disabled
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Parameter
LW2 port number
LW3 port number
HTTP port number
TPS Ethernet status
Control protocol
Baud rate
Databits
Parity
Stopbits
Operation mode (Link and Local)
Command injection port nr. - Local
Command injection port nr. - TPS *
Command injection status
Comm. inj. input port nr. - Local
Comm. inj. input port nr. - TPS *
Comm. inj. output port nr. - Local
Comm. inj. output port nr. - TPS *
Unique port names
Unique device label
User EDIDs
Events
IR codes
Presets
Unprotected backups
Protected backups
USB 2.0 switch state
* Only in case of MMX4x2-HT200 model.
Setting/Value
10001
6107
80
Enabled
RS-232 settings
LW2
57600
8
No
1
Control
8001
8002
IR port settings
Enabled
9001
9002
9003
9003
Miscellaneous
Cleared
Cleared
Not cleared
Cleared
Cleared
Cleared
Cleared
Not cleared
USB-A ports switched to PC1 port
128
