3. Installation

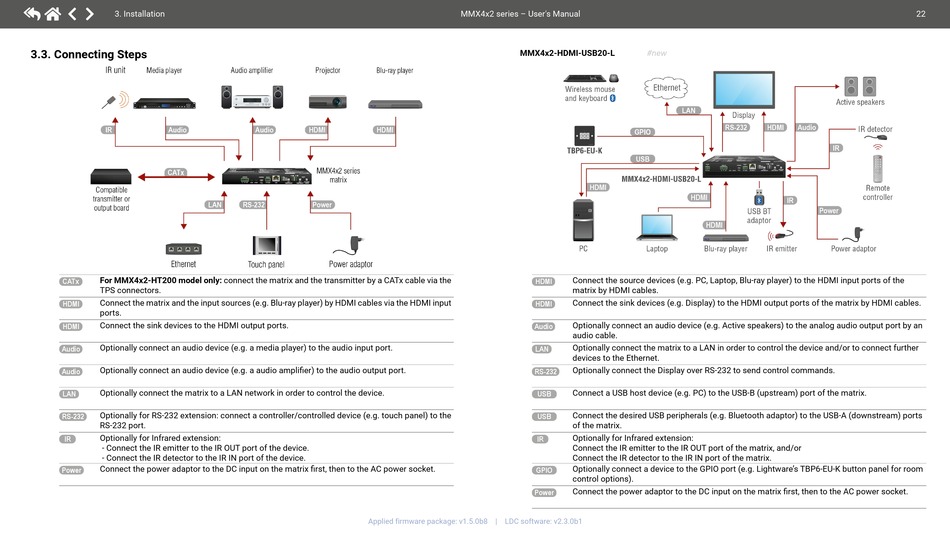

3.3. Connecting Steps
For MMX4x2-HT200 model only: connect the matrix and the transmitter by a CATx cable via the
CATx
TPS connectors.
Connect the matrix and the input sources (e.g. Blu-ray player) by HDMI cables via the HDMI input
HDMI
ports.
Connect the sink devices to the HDMI output ports.
HDMI
Optionally connect an audio device (e.g. a media player) to the audio input port.
Audio
Optionally connect an audio device (e.g. a audio amplifier) to the audio output port.
Audio
Optionally connect the matrix to a LAN network in order to control the device.
LAN
Optionally for RS-232 extension: connect a controller/controlled device (e.g. touch panel) to the
RS-232
RS-232 port.
Optionally for Infrared extension:
IR
- Connect the IR emitter to the IR OUT port of the device.
- Connect the IR detector to the IR IN port of the device.
Connect the power adaptor to the DC input on the matrix first, then to the AC power socket.
Power
MMX4x2 series – User's Manual
MMX4x2-HDMI-USB20-L
HDMI
HDMI
Audio
LAN
RS-232
USB
USB
IR
GPIO
Power
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
#new
Connect the source devices (e.g. PC, Laptop, Blu-ray player) to the HDMI input ports of the
matrix by HDMI cables.
Connect the sink devices (e.g. Display) to the HDMI output ports of the matrix by HDMI cables.
Optionally connect an audio device (e.g. Active speakers) to the analog audio output port by an
audio cable.
Optionally connect the matrix to a LAN in order to control the device and/or to connect further
devices to the Ethernet.
Optionally connect the Display over RS-232 to send control commands.
Connect a USB host device (e.g. PC) to the USB-B (upstream) port of the matrix.
Connect the desired USB peripherals (e.g. Bluetooth adaptor) to the USB-A (downstream) ports
of the matrix.
Optionally for Infrared extension:
Connect the IR emitter to the IR OUT port of the matrix, and/or
Connect the IR detector to the IR IN port of the matrix.
Optionally connect a device to the GPIO port (e.g. Lightware's TBP6-EU-K button panel for room
control options).
Connect the power adaptor to the DC input on the matrix first, then to the AC power socket.
