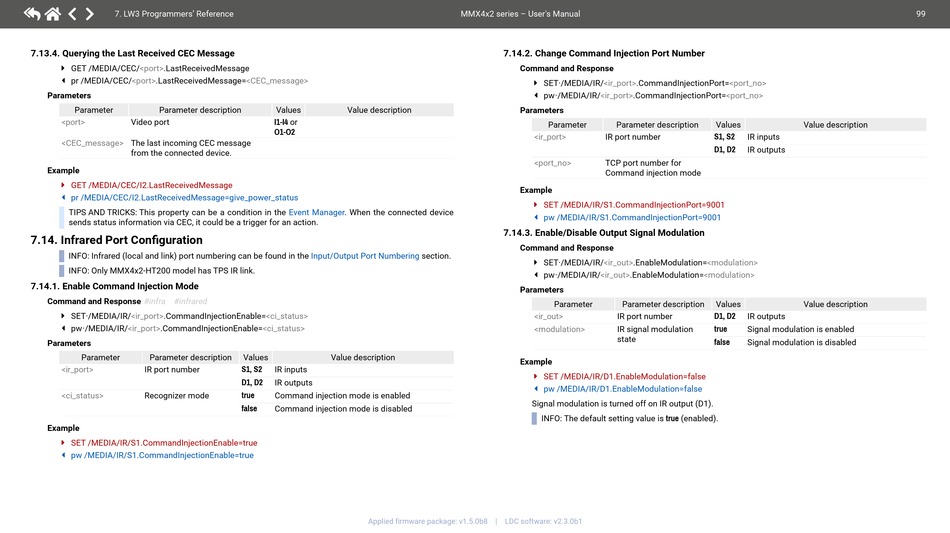

7.13.4. Querying the Last Received CEC Message
ç GET /MEDIA/CEC/<port>.LastReceivedMessage
æ pr /MEDIA/CEC/<port>.LastReceivedMessage=<CEC_message>
Parameters
Parameter Parameter description
<port> Video port
<CEC_message> The last incoming CEC message
from the connected device.
Example
ç GET /MEDIA/CEC/I2.LastReceivedMessage
æ pr /MEDIA/CEC/I2.LastReceivedMessage=give_power_status
TIPS AND TRICKS:
This property can be a condition in the
sends status information via CEC, it could be a trigger for an action.
7.14. Infrared Port Configuration

INFO: Infrared (local and link) port numbering can be found in the
INFO:
Only MMX4x2-HT200 model has TPS IR link.
7.14.1. Enable Command Injection Mode
Command and Response #infra #infrared
SET·/MEDIA/IR/<ir_port>.CommandInjectionEnable=<ci_status>
ç
pw·/MEDIA/IR/<ir_port>.CommandInjectionEnable=<ci_status>
æ
Parameters
Parameter Parameter description
<ir_port> IR port number
<ci_status> Recognizer mode
Example
ç SET /MEDIA/IR/S1.CommandInjectionEnable=true
æ pw /MEDIA/IR/S1.CommandInjectionEnable=true
Values Value description
I1-I4 or
O1-O2
Event Manager. When the connected device
Input/Output Port Numbering
Values Value description
IR inputs
S1, S2
IR outputs
D1, D2
Command injection mode is enabled
true
Command injection mode is disabled
false
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
7.14.2. Change Command Injection Port Number
Command and Response
SET·/MEDIA/IR/<ir_port>.CommandInjectionPort=<port_no>
ç
pw·/MEDIA/IR/<ir_port>.CommandInjectionPort=<port_no>
æ
Parameters
Parameter
<ir_port>
<port_no>
Example
ç SET /MEDIA/IR/S1.CommandInjectionPort=9001
æ pw /MEDIA/IR/S1.CommandInjectionPort=9001
7.14.3. Enable/Disable Output Signal Modulation
Command and Response
section.
SET·/MEDIA/IR/<ir_out>.EnableModulation=<modulation>
ç
pw·/MEDIA/IR/<ir_out>.EnableModulation=<modulation>
æ
Parameters
Parameter
<ir_out>
<modulation>
Example
ç SET /MEDIA/IR/D1.EnableModulation=false
æ pw /MEDIA/IR/D1.EnableModulation=false
Signal modulation is turned off on IR output (D1).

INFO: The default setting value is true (enabled).
Parameter description Values
IR port number IR inputs
S1, S2
IR outputs
D1, D2
TCP port number for
Command injection mode
Parameter description Values
IR port number D1, D2 IR outputs
IR signal modulation true Signal modulation is enabled
state
Signal modulation is disabled
false
99
Value description
Value description
