6. LW2 Programmers' Reference

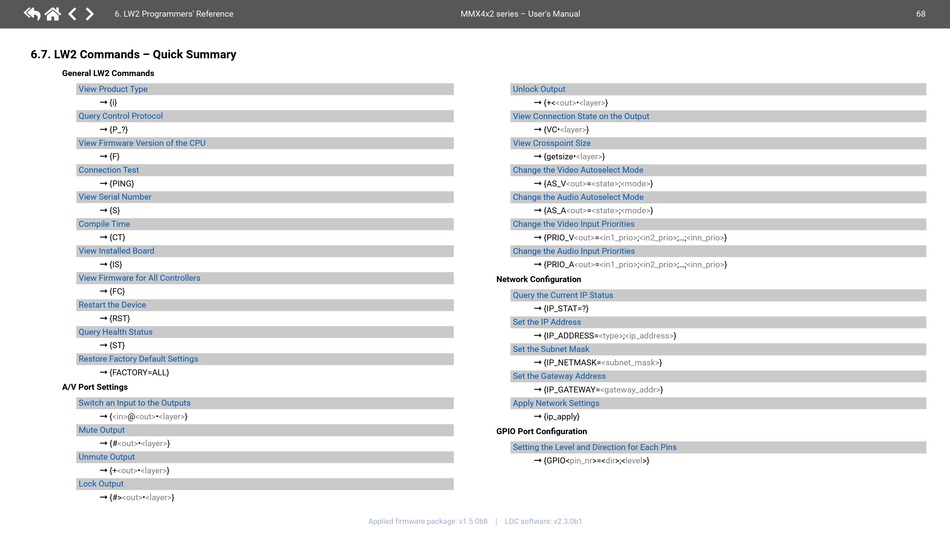

6.7. LW2 Commands – Quick Summary
General LW2 Commands
View Product Type
 {i}
Query Control Protocol
 {P_?}
View Firmware Version of the CPU
 {F}
Connection Test
 {PING}
View Serial Number
 {S}
Compile Time
 {CT}
View Installed Board
 {IS}
View Firmware for All Controllers
 {FC}
Restart the Device
 {RST}
Query Health Status
 {ST}
Restore Factory Default Settings
 {FACTORY=ALL}
A/V Port Settings
Switch an Input to the Outputs
 {<in>@<out>•<layer>}
Mute Output
 {#<out>•<layer>}
Unmute Output
 {+<out>•<layer>}
Lock Output
 {#><out>•<layer>}
MMX4x2 series – User's Manual
Unlock Output
 {+<<out>•<layer>}
View Connection State on the Output
 {VC•<layer>}
View Crosspoint Size
 {getsize•<layer>}
Change the Video Autoselect Mode
 {AS_V<out>=<state>;<mode>}
Change the Audio Autoselect Mode
 {AS_A<out>=<state>;<mode>}
Change the Video Input Priorities
 {PRIO_V<out>=<in1_prio>;<in2_prio>;...;<inn_prio>}
Change the Audio Input Priorities
 {PRIO_A<out>=<in1_prio>;<in2_prio>;...;<inn_prio>}
Network Configuration
Query the Current IP Status
 {IP_STAT=?}
Set the IP Address
 {IP_ADDRESS=<type>;<ip_address>}
Set the Subnet Mask
 {IP_NETMASK=<subnet_mask>}
Set the Gateway Address
 {IP_GATEWAY=<gateway_addr>}
Apply Network Settings
 {ip_apply}
GPIO Port Configuration
Setting the Level and Direction for Each Pins
 {GPIO<pin_nr>=<dir>;<level>}
