7. LW3 Programmers' Reference

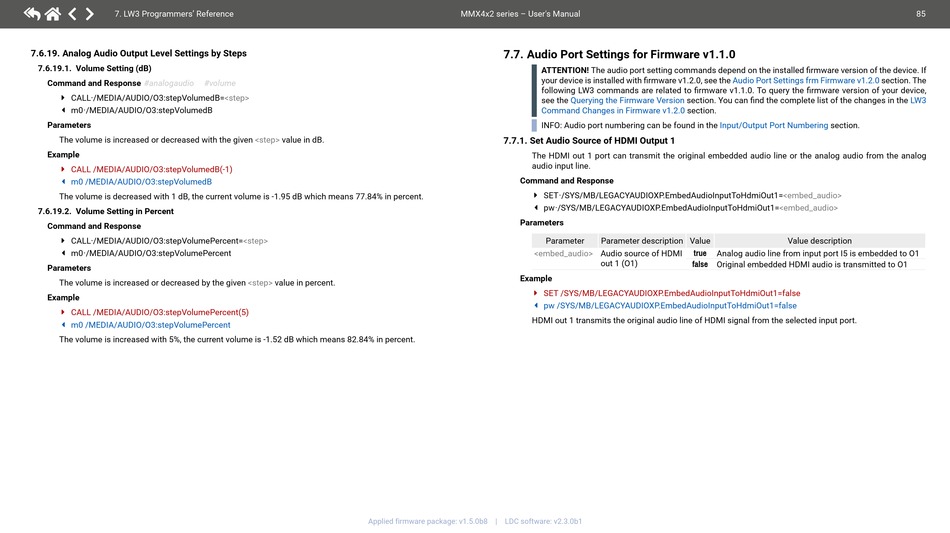

7.6.19. Analog Audio Output Level Settings by Steps
7.6.19.1. Volume Setting (dB)
Command and Response #analogaudio
CALL·/MEDIA/AUDIO/O3:stepVolumedB=<step>
ç
æ m0·/MEDIA/AUDIO/O3:stepVolumedB
Parameters
The volume is increased or decreased with the given
Example
ç CALL /MEDIA/AUDIO/O3:stepVolumedB(-1)
æ m0 /MEDIA/AUDIO/O3:stepVolumedB
The volume is decreased with 1 dB, the current volume is -1.95 dB which means 77.84% in percent.
7.6.19.2. Volume Setting in Percent
Command and Response
CALL·/MEDIA/AUDIO/O3:stepVolumePercent=<step>
ç
æ m0·/MEDIA/AUDIO/O3:stepVolumePercent
Parameters
The volume is increased or decreased by the given
Example
ç CALL /MEDIA/AUDIO/O3:stepVolumePercent(5)
æ m0 /MEDIA/AUDIO/O3:stepVolumePercent
The volume is increased with 5%, the current volume is -1.52 dB which means 82.84% in percent.
#volume
<step> value in dB.
<step> value in percent.
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
7.7. Audio Port Settings for Firmware v1.1.0

ATTENTION! The audio port setting commands depend on the installed firmware version of the device. If
your device is installed with firmware v1.2.0, see the
following LW3 commands are related to firmware v1.1.0. To query the firmware version of your device,
see the Querying the Firmware Version
Command Changes in Firmware v1.2.0
INFO:
Audio port numbering can be found in the
7.7.1. Set Audio Source of HDMI Output 1
The HDMI out 1 port can transmit the original embedded audio line or the analog audio from the analog
audio input line.
Command and Response
SET·/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1=<embed_audio>
ç
pw·/SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1=<embed_audio>
æ
Parameters
Parameter Parameter description Value
<embed_audio> Audio source of HDMI
out 1 (O1)
Example
ç SET /SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1=false
æ pw /SYS/MB/LEGACYAUDIOXP.EmbedAudioInputToHdmiOut1=false
HDMI out 1 transmits the original audio line of HDMI signal from the selected input port.
Audio Port Settings frm Firmware v1.2.0
section. You can find the complete list of the changes in the
section.
Input/Output Port Numbering section.
Value description
Analog audio line from input port I5 is embedded to O1
true
Original embedded HDMI audio is transmitted to O1
false
85
section. The
LW3
