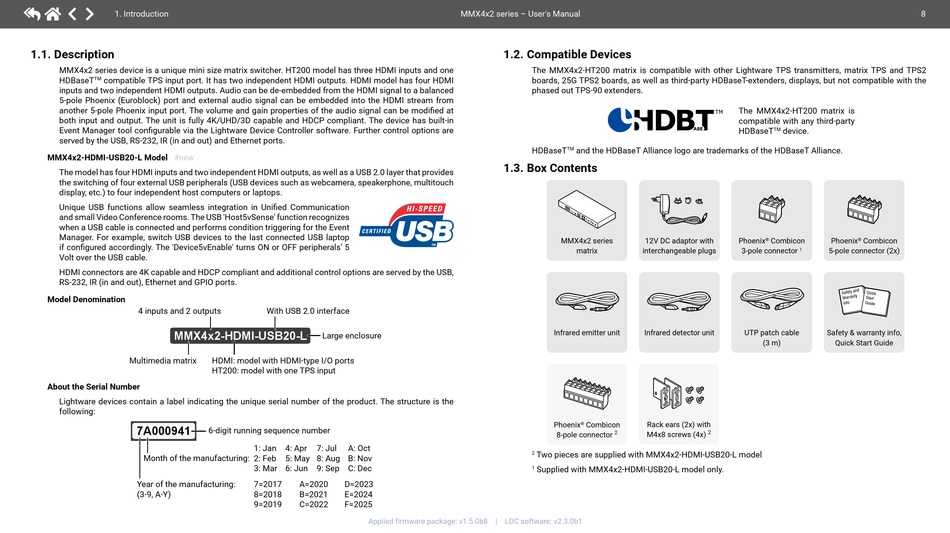

1. Introduction
1.1. Description
MMX4x2 series device is a unique mini size matrix switcher. HT200 model has three HDMI inputs and one
HDBaseT compatible TPS input port. It has two independent HDMI outputs. HDMI model has four HDMI
TM
inputs and two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced
5-pole Phoenix (Euroblock) port and external audio signal can be embedded into the HDMI stream from
another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified at
both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has built-in
Event Manager tool configurable via the Lightware Device Controller software. Further control options are
served by the USB, RS-232, IR (in and out) and Ethernet ports.
MMX4x2-HDMI-USB20-L Model #new
The model has four HDMI inputs and two independent HDMI outputs, as well as a USB 2.0 layer that provides
the switching of four external USB peripherals (USB devices such as webcamera, speakerphone, multitouch
display, etc.) to four independent host computers or laptops.
Unique USB functions allow seamless integration in Unified Communication
and small Video Conference rooms. The USB 'Host5vSense' function recognizes
when a USB cable is connected and performs condition triggering for the Event
Manager. For example, switch USB devices to the last connected USB laptop
if configured accordingly. The 'Device5vEnable' turns ON or OFF peripherals' 5
Volt over the USB cable.
HDMI connectors are 4K capable and HDCP compliant and additional control options are served by the USB,
RS-232, IR (in and out), Ethernet and GPIO ports.
Model Denomination
4 inputs and 2 outputs
MMX4x2-HDMI-USB20-L
Multimedia matrix
About the Serial Number
Lightware devices contain a label indicating the unique serial number of the product. The structure is the
following:
7A000941
Month of the manufacturing:
Year of the manufacturing:
(3-9, A-Y)
With USB 2.0 interface
Large enclosure
HDMI: model with HDMI-type I/O ports
HT200: model with one TPS input
6-digit running sequence number
1: Jan 4: Apr 7: Jul A: Oct
2: Feb 5: May 8: Aug B: Nov
3: Mar 6: Jun 9: Sep C: Dec
7=2017 A=2020 D=2023
8=2018 B=2021 E=2024
9=2019 C=2022 F=2025
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
1.2. Compatible Devices
The MMX4x2-HT200 matrix is compatible with other Lightware TPS transmitters, matrix TPS and TPS2
boards, 25G TPS2 boards, as well as third-party HDBaseT-extenders, displays, but not compatible with the
phased out TPS-90 extenders.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM
1.3. Box Contents
MMX4x2 series
matrix
Infrared emitter unit
Phoenix Combicon
®
2
8-pole connector
Two pieces are supplied with MMX4x2-HDMI-USB20-L model
2
Supplied with MMX4x2-HDMI-USB20-L model only.
1
The MMX4x2-HT200 matrix is
compatible with any third-party
HDBaseT TM device.
12V DC adaptor with Phoenix Combicon
®
interchangeable plugs 3-pole connector
1
Infrared detector unit UTP patch cable
(3 m)
Rack ears (2x) with
2
M4x8 screws (4x)
8
Phoenix Combicon
®
5-pole connector (2x)
Safety & warranty info,
Quick Start Guide
