Crosspoint Menu - Lightware MMX4x2-HDMI User Manual

   
5. Software Control - Lightware Device Controller

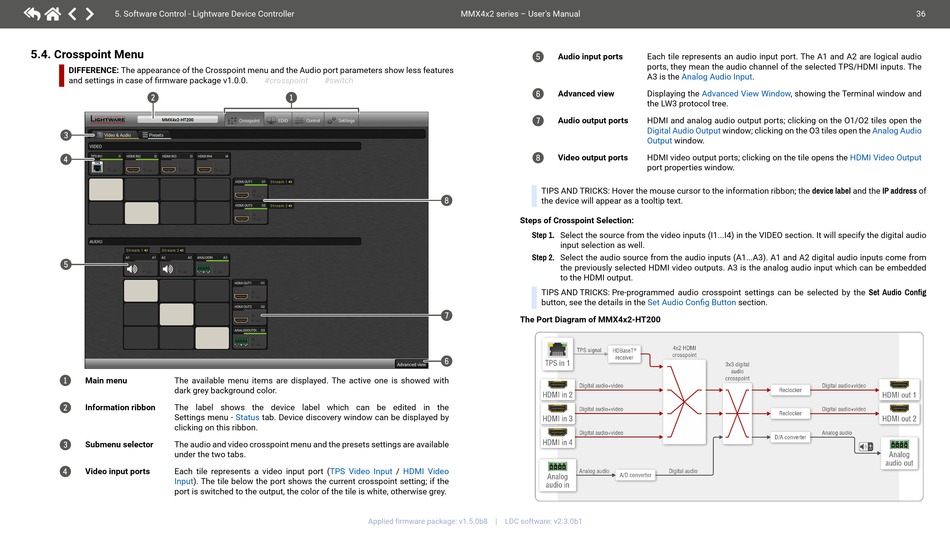

5.4. Crosspoint Menu
DIFFERENCE:
The appearance of the Crosspoint menu and the Audio port parameters show less features
and settings in case of firmware package v1.0.0.
2
3
4
5
1 Main menu The available menu items are displayed. The active one is showed with
dark grey background color.
2 Information ribbon The label shows the device label which can be edited in the
Settings menu -
clicking on this ribbon.
3 Submenu selector The audio and video crosspoint menu and the presets settings are available
under the two tabs.
4 Video input ports Each tile represents a video input port
Input). The tile below the port shows the current crosspoint setting; if the
port is switched to the output, the color of the tile is white, otherwise grey.
#crosspoint #switch
1
Status tab. Device discovery window can be displayed by
(TPS Video Input / HDMI Video
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Audio input ports
5
Advanced view
6
Audio output ports
7
Video output ports
8
TIPS AND TRICKS:
Hover the mouse cursor to the information ribbon; the device label and the IP address of
8
the device will appear as a tooltip text.
Steps of Crosspoint Selection:
Step 1. Select the source from the video inputs (I1...I4) in the VIDEO section. It will specify the digital audio
input selection as well.
Step 2. Select the audio source from the audio inputs (A1...A3). A1 and A2 digital audio inputs come from
the previously selected HDMI video outputs. A3 is the analog audio input which can be embedded
to the HDMI output.

TIPS AND TRICKS: Pre-programmed audio crosspoint settings can be selected by the Set Audio Config
button, see the details in the
7
The Port Diagram of MMX4x2-HT200
6
Each tile represents an audio input port. The A1 and A2 are logical audio
ports, they mean the audio channel of the selected TPS/HDMI inputs. The
A3 is the Analog Audio Input.
Displaying the Advanced View Window, showing the Terminal window and
the LW3 protocol tree.
HDMI and analog audio output ports; clicking on the O1/O2 tiles open the
Digital Audio Output window; clicking on the O3 tiles open the
Output window.
HDMI video output ports; clicking on the tile opens the
port properties window.
Set Audio Config Button section.
36
Analog Audio
HDMI Video Output
