2. Product Overview

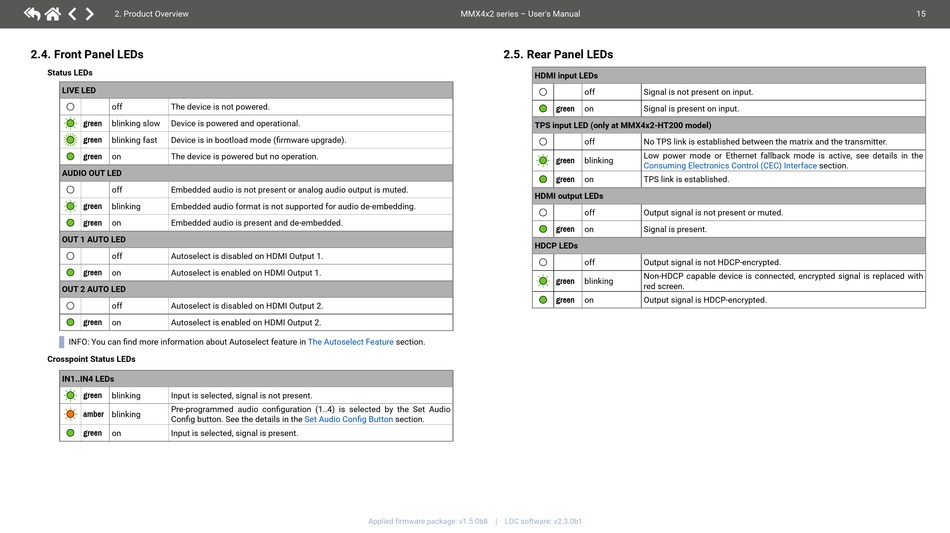

2.4. Front Panel LEDs
Status LEDs
LIVE LED
off The device is not powered.
blinking slow Device is powered and operational.
green
green blinking fast Device is in bootload mode (firmware upgrade).
on The device is powered but no operation.
green
AUDIO OUT LED
off Embedded audio is not present or analog audio output is muted.
blinking Embedded audio format is not supported for audio de-embedding.
green
green on Embedded audio is present and de-embedded.
OUT 1 AUTO LED
off Autoselect is disabled on HDMI Output 1.
on Autoselect is enabled on HDMI Output 1.
green
OUT 2 AUTO LED
off Autoselect is disabled on HDMI Output 2.
on Autoselect is enabled on HDMI Output 2.
green
INFO:
You can find more information about Autoselect feature in
Crosspoint Status LEDs
IN1..IN4 LEDs
blinking Input is selected, signal is not present.
green
Pre-programmed audio configuration (1..4) is selected by the Set Audio
amber blinking
Config button. See the details in the
green on Input is selected, signal is present.
MMX4x2 series – User's Manual
The Autoselect Feature section.
Set Audio Config Button section.
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
2.5. Rear Panel LEDs
HDMI input LEDs
off Signal is not present on input.
on Signal is present on input.
green
TPS input LED (only at MMX4x2-HT200 model)
off No TPS link is established between the matrix and the transmitter.
Low power mode or Ethernet fallback mode is active, see details in the
blinking
green
Consuming Electronics Control (CEC) Interface
on TPS link is established.
green
HDMI output LEDs
off Output signal is not present or muted.
on Signal is present.
green
HDCP LEDs
off Output signal is not HDCP-encrypted.
Non-HDCP capable device is connected, encrypted signal is replaced with
blinking
green
red screen.
green on Output signal is HDCP-encrypted.
15
section.
