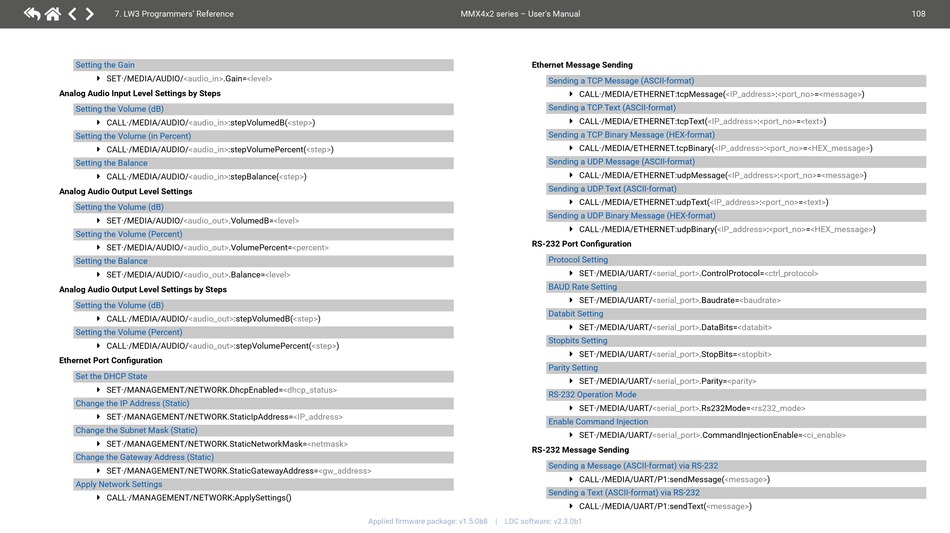

Lightware MMX4x2-HDMI User Manual page 108

   
7. LW3 Programmers' Reference
Setting the Gain
SET·/MEDIA/AUDIO/<audio_in>.Gain=<level>
ç
Analog Audio Input Level Settings by Steps
Setting the Volume (dB)
ç CALL·/MEDIA/AUDIO/<audio_in>:stepVolumedB(<step>)
Setting the Volume (in Percent)
ç CALL·/MEDIA/AUDIO/<audio_in>:stepVolumePercent(<step>)
Setting the Balance
ç CALL·/MEDIA/AUDIO/<audio_in>:stepBalance(<step>)
Analog Audio Output Level Settings
Setting the Volume (dB)
SET·/MEDIA/AUDIO/<audio_out>.VolumedB=<level>
ç
Setting the Volume (Percent)
SET·/MEDIA/AUDIO/<audio_out>.VolumePercent=<percent>
ç
Setting the Balance
SET·/MEDIA/AUDIO/<audio_out>.Balance=<level>
ç
Analog Audio Output Level Settings by Steps
Setting the Volume (dB)
ç CALL·/MEDIA/AUDIO/<audio_out>:stepVolumedB(<step>)
Setting the Volume (Percent)
ç CALL·/MEDIA/AUDIO/<audio_out>:stepVolumePercent(<step>)
Ethernet Port Configuration
Set the DHCP State
SET·/MANAGEMENT/NETWORK.DhcpEnabled=<dhcp_status>
ç
Change the IP Address (Static)
SET·/MANAGEMENT/NETWORK.StaticIpAddress=<IP_address>
ç
Change the Subnet Mask (Static)
SET·/MANAGEMENT/NETWORK.StaticNetworkMask=<netmask>
ç
Change the Gateway Address (Static)
SET·/MANAGEMENT/NETWORK.StaticGatewayAddress=<gw_address>
ç
Apply Network Settings
ç CALL·/MANAGEMENT/NETWORK:ApplySettings()
MMX4x2 series – User's Manual
Ethernet Message Sending
RS-232 Port Configuration
RS-232 Message Sending
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
Sending a TCP Message (ASCII-format)
ç CALL·/MEDIA/ETHERNET:tcpMessage(<IP_address>:<port_no>=<message>)
Sending a TCP Text (ASCII-format)
ç CALL·/MEDIA/ETHERNET:tcpText(<IP_address>:<port_no>=<text>)
Sending a TCP Binary Message (HEX-format)
ç CALL·/MEDIA/ETHERNET.tcpBinary(<IP_address>:<port_no>=<HEX_message>)
Sending a UDP Message (ASCII-format)
ç CALL·/MEDIA/ETHERNET:udpMessage(<IP_address>:<port_no>=<message>)
Sending a UDP Text (ASCII-format)
ç CALL·/MEDIA/ETHERNET:udpText(<IP_address>:<port_no>=<text>)
Sending a UDP Binary Message (HEX-format)
ç CALL·/MEDIA/ETHERNET:udpBinary(<IP_address>:<port_no>=<HEX_message>)
Protocol Setting
SET·/MEDIA/UART/<serial_port>.ControlProtocol=<ctrl_protocol>
ç
BAUD Rate Setting
SET·/MEDIA/UART/<serial_port>.Baudrate=<baudrate>
ç
Databit Setting
SET·/MEDIA/UART/<serial_port>.DataBits=<databit>
ç
Stopbits Setting
SET·/MEDIA/UART/<serial_port>.StopBits=<stopbit>
ç
Parity Setting
SET·/MEDIA/UART/<serial_port>.Parity=<parity>
ç
RS-232 Operation Mode
SET·/MEDIA/UART/<serial_port>.Rs232Mode=<rs232_mode>
ç
Enable Command Injection
SET·/MEDIA/UART/<serial_port>.CommandInjectionEnable=<ci_enable>
ç
Sending a Message (ASCII-format) via RS-232
ç CALL·/MEDIA/UART/P1:sendMessage(<message>)
Sending a Text (ASCII-format) via RS-232
ç CALL·/MEDIA/UART/P1:sendText(<message>)
