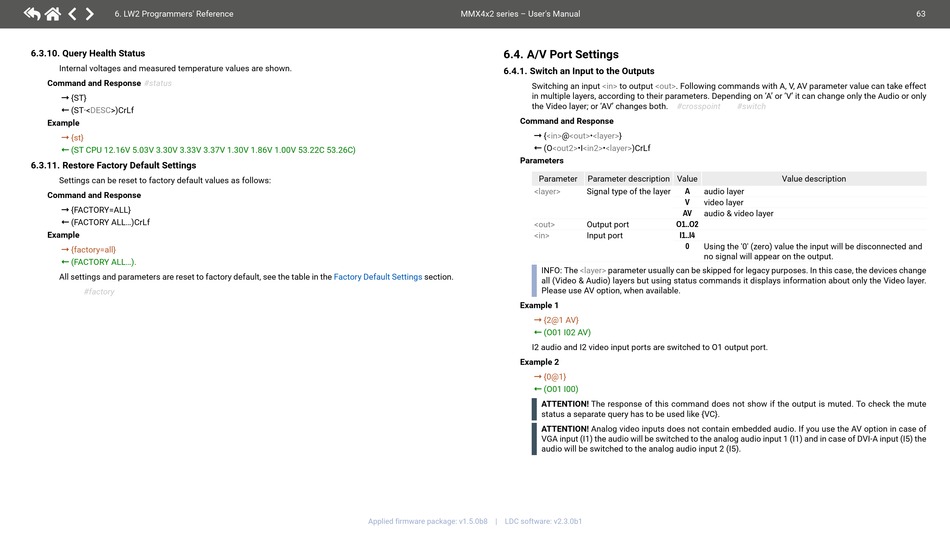

6. LW2 Programmers' Reference
6.3.10. Query Health Status
Internal voltages and measured temperature values are shown.
Command and Response #status
 {ST}
 (ST·<DESC>)CrLf
Example
 {st}
 (ST CPU 12.16V 5.03V 3.30V 3.33V 3.37V 1.30V 1.86V 1.00V 53.22C 53.26C)
6.3.11. Restore Factory Default Settings
Settings can be reset to factory default values as follows:
Command and Response
 {FACTORY=ALL}
 (FACTORY ALL...)CrLf
Example
 {factory=all}
 (FACTORY ALL...).
All settings and parameters are reset to factory default, see the table in the
#factory
MMX4x2 series – User's Manual
6.4. A/V Port Settings
6.4.1. Switch an Input to the Outputs
Factory Default Settings section.
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
Switching an input <in> to output <out>. Following commands with A, V, AV parameter value can take effect
in multiple layers, according to their parameters. Depending on 'A' or 'V' it can change only the Audio or only
the Video layer; or 'AV' changes both. #crosspoint
Command and Response
 {<in>@<out>•<layer>}
 (O<out2>•I<in2>•<layer>)CrLf
Parameters
Parameter Parameter description Value
<layer> Signal type of the layer
A
V
AV
<out> Output port
O1..O2
<in> Input port
I1..I4
0
INFO:
The <layer> parameter usually can be skipped for legacy purposes. In this case, the devices change
all (Video & Audio) layers but using status commands it displays information about only the Video layer.
Please use AV option, when available.
Example 1
 {2@1 AV}
 (O01 I02 AV)
I2 audio and I2 video input ports are switched to O1 output port.
Example 2
 {0@1}
 (O01 I00)
ATTENTION!
The response of this command does not show if the output is muted. To check the mute
status a separate query has to be used like {VC}.

ATTENTION! Analog video inputs does not contain embedded audio. If you use the AV option in case of
VGA input (I1) the audio will be switched to the analog audio input 1 (I1) and in case of DVI-A input (I5) the
audio will be switched to the analog audio input 2 (I5).
#switch
Value description
audio layer
video layer
audio & video layer
Using the '0' (zero) value the input will be disconnected and
no signal will appear on the output.
