2. Product Overview

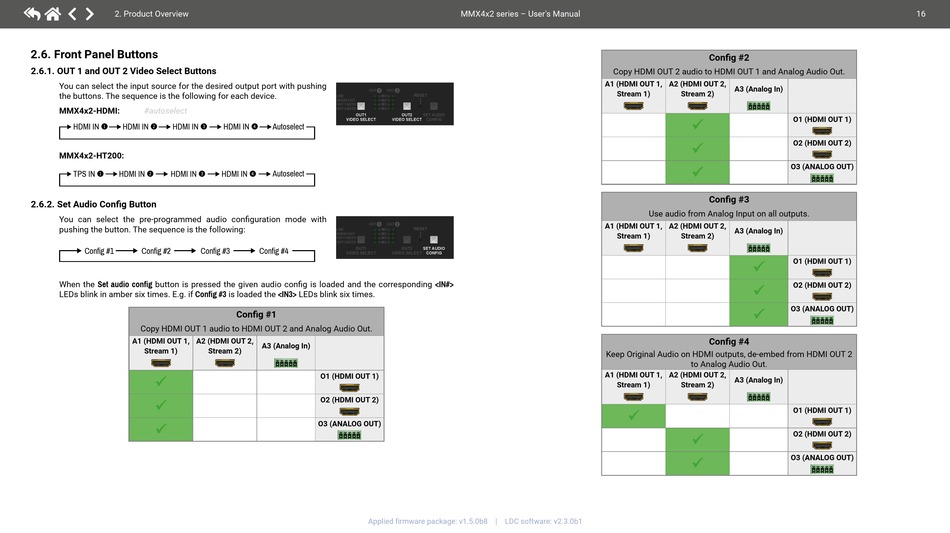

2.6. Front Panel Buttons
2.6.1. OUT 1 and OUT 2 Video Select Buttons
You can select the input source for the desired output port with pushing
the buttons. The sequence is the following for each device.
MMX4x2-HDMI: #autoselect
HDMI IN 1 HDMI IN 2 HDMI IN 3
MMX4x2-HT200:
TPS IN 1 HDMI IN 2 HDMI IN 3
2.6.2. Set Audio Config Button
You can select the pre-programmed audio configuration mode with
pushing the button. The sequence is the following:
Config #1 Config #2 Config #3
When the Set audio config button is pressed the given audio config is loaded and the corresponding <IN#>
LEDs blink in amber six times. E.g. if Config #3 is loaded the <IN3> LEDs blink six times.
Copy HDMI OUT 1 audio to HDMI OUT 2 and Analog Audio Out.
A1 (HDMI OUT 1, A2 (HDMI OUT 2,
Stream 1)
 
 
 
OUT OUT
LIVE IN 1
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
OUT1
VIDEO SELECT
HDMI IN 4 Autoselect
HDMI IN 4 Autoselect
OUT OUT
LIVE IN 1
AUDIO OUT IN 2
OUT 1 AUTO IN 3
OUT 2 AUTO IN 4
Config #4 OUT1
VIDEO SELECT
Config #1
A3 (Analog In)
Stream 2)
O1 (HDMI OUT 1)
O2 (HDMI OUT 2)
O3 (ANALOG OUT)
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
RESET
OUT2 SET AUDIO
VIDEO SELECT CONFIG
RESET
OUT2 SET AUDIO
VIDEO SELECT CONFIG
Config #2
Copy HDMI OUT 2 audio to HDMI OUT 1 and Analog Audio Out.
A1 (HDMI OUT 1, A2 (HDMI OUT 2,
A3 (Analog In)
Stream 1) Stream 2)
 
 
 
Config #3
Use audio from Analog Input on all outputs.
A1 (HDMI OUT 1, A2 (HDMI OUT 2,
A3 (Analog In)
Stream 1) Stream 2)
 
 
 
Config #4
Keep Original Audio on HDMI outputs, de-embed from HDMI OUT 2
to Analog Audio Out.
A1 (HDMI OUT 1, A2 (HDMI OUT 2,
A3 (Analog In)
Stream 1) Stream 2)
 
 
 
16
