5. Software Control - Lightware Device Controller MMX4x2 series – User's Manual 46

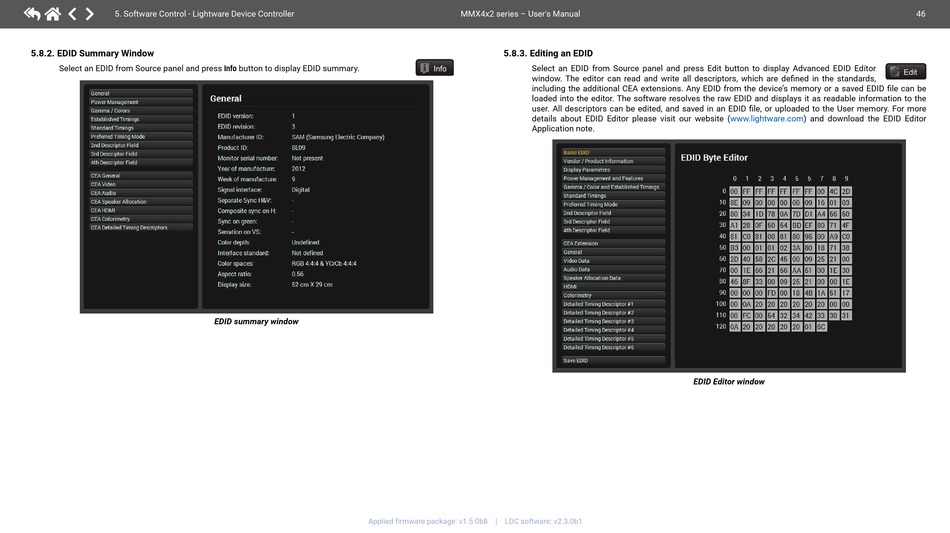

5.8.2. EDID Summary Window 5.8.3. Editing an EDID
Select an EDID from Source panel and press Info button to display EDID summary. Select an EDID from Source panel and press Edit button to display Advanced EDID Editor
window. The editor can read and write all descriptors, which are defined in the standards,
including the additional CEA extensions. Any EDID from the device's memory or a saved EDID file can be
loaded into the editor. The software resolves the raw EDID and displays it as readable information to the
user. All descriptors can be edited, and saved in an EDID file, or uploaded to the User memory. For more
details about EDID Editor please visit our website (www.lightware.com) and download the EDID Editor
Application note.

EDID summary window

EDID Editor window
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
