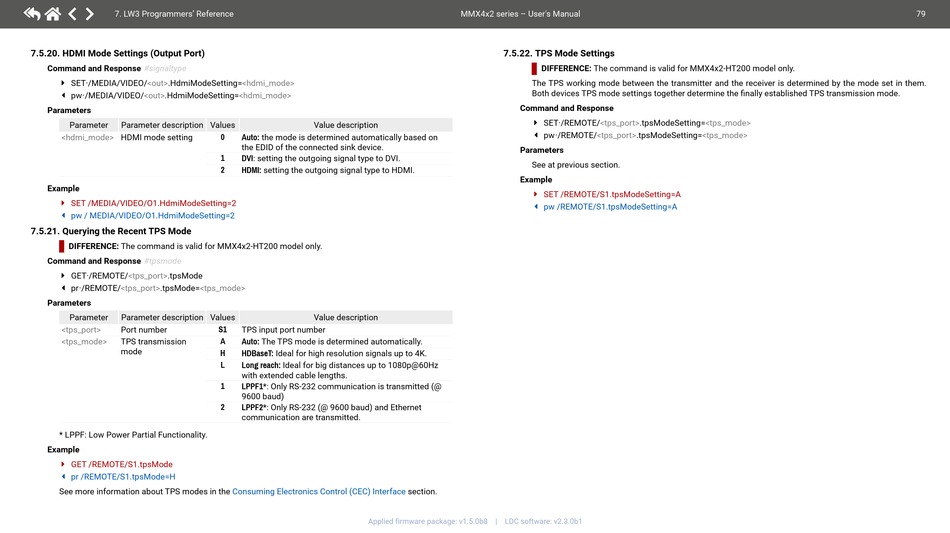

7.5.20. HDMI Mode Settings (Output Port)
Command and Response #signaltype
SET·/MEDIA/VIDEO/<out>.HdmiModeSetting=<hdmi_mode>
ç
pw·/MEDIA/VIDEO/<out>.HdmiModeSetting=<hdmi_mode>
æ
Parameters
Parameter Parameter description Values
<hdmi_mode> HDMI mode setting
Example
ç SET /MEDIA/VIDEO/O1.HdmiModeSetting=2
æ pw / MEDIA/VIDEO/O1.HdmiModeSetting=2
7.5.21. Querying the Recent TPS Mode

DIFFERENCE: The command is valid for MMX4x2-HT200 model only.
Command and Response #tpsmode
ç GET·/REMOTE/<tps_port>.tpsMode
pr·/REMOTE/<tps_port>.tpsMode=<tps_mode>
æ
Parameters
Parameter Parameter description Values
<tps_port> Port number
<tps_mode> TPS transmission
mode
* LPPF: Low Power Partial Functionality.
Example
ç GET /REMOTE/S1.tpsMode
æ pr /REMOTE/S1.tpsMode=H
See more information about TPS modes in the
Value description
Auto: the mode is determined automatically based on
0
the EDID of the connected sink device.
DVI: setting the outgoing signal type to DVI.
1
2 HDMI: setting the outgoing signal type to HDMI.
Value description
TPS input port number
S1
Auto: The TPS mode is determined automatically.
A
HDBaseT: Ideal for high resolution signals up to 4K.
H
Long reach: Ideal for big distances up to 1080p@60Hz
L
with extended cable lengths.
LPPF1*: Only RS-232 communication is transmitted (@
1
9600 baud)
LPPF2*: Only RS-232 (@ 9600 baud) and Ethernet
2
communication are transmitted.
Consuming Electronics Control (CEC) Interface
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
7.5.22. TPS Mode Settings

DIFFERENCE:
The TPS working mode between the transmitter and the receiver is determined by the mode set in them.
Both devices TPS mode settings together determine the finally established TPS transmission mode.
Command and Response
SET·/REMOTE/<tps_port>.tpsModeSetting=<tps_mode>
ç
pw·/REMOTE/<tps_port>.tpsModeSetting=<tps_mode>
æ
Parameters
See at previous section.
Example
ç SET /REMOTE/S1.tpsModeSetting=A
æ pw /REMOTE/S1.tpsModeSetting=A
section.
The command is valid for MMX4x2-HT200 model only.
