2. Product Overview

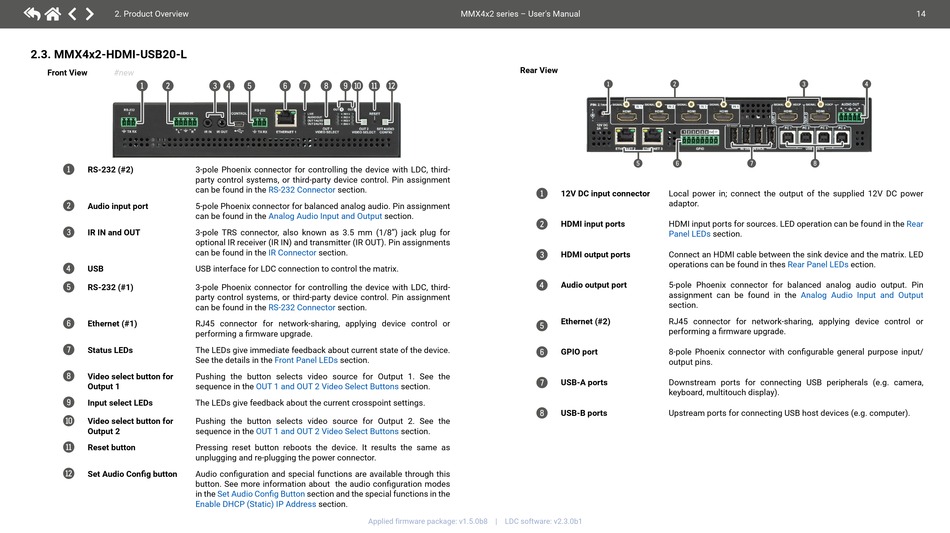

2.3. MMX4x2-HDMI-USB20-L
Front View #new
1 2
1 RS-232 (#2) 3-pole Phoenix connector for controlling the device with LDC, third-
party control systems, or third-party device control. Pin assignment
can be found in the
2 Audio input port 5-pole Phoenix connector for balanced analog audio. Pin assignment
can be found in the
3 IR IN and OUT 3-pole TRS connector, also known as 3.5 mm (1/8") jack plug for
optional IR receiver (IR IN) and transmitter (IR OUT). Pin assignments
can be found in the
4
USB USB interface for LDC connection to control the matrix.
5 RS-232 (#1) 3-pole Phoenix connector for controlling the device with LDC, third-
party control systems, or third-party device control. Pin assignment
can be found in the
6 Ethernet (#1) RJ45 connector for network-sharing, applying device control or
performing a firmware upgrade.
7
Status LEDs The LEDs give immediate feedback about current state of the device.
See the details in the
8 Video select button for Pushing the button selects video source for Output 1. See the
Output 1 sequence in the
9 Input select LEDs The LEDs give feedback about the current crosspoint settings.
q Video select button for Pushing the button selects video source for Output 2. See the
Output 2 sequence in the
w Reset button Pressing reset button reboots the device. It results the same as
unplugging and re-plugging the power connector.
e
Set Audio Config button Audio configuration and special functions are available through this
button. See more information about the audio configuration modes
in the
Enable DHCP (Static) IP Address
3 4 5 6 7 8 9 q w e
RS-232 Connector section.
Analog Audio Input and Output section.
IR Connector section.
RS-232 Connector section.
Front Panel LEDs section.
OUT 1 and OUT 2 Video Select Buttons
OUT 1 and OUT 2 Video Select Buttons
Set Audio Config Button section and the special functions in the
section.
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Rear View
1 12V DC input connector
2 HDMI input ports
3 HDMI output ports
4 Audio output port
Ethernet (#2)
5
6 GPIO port
7 USB-A ports
section.
8 USB-B ports
section.
1 2
5 6 7
Local power in; connect the output of the supplied 12V DC power
adaptor.
HDMI input ports for sources. LED operation can be found in the
Panel LEDs section.
Connect an HDMI cable between the sink device and the matrix. LED
operations can be found in thes
5-pole Phoenix connector for balanced analog audio output. Pin
assignment can be found in the
section.
RJ45 connector for network-sharing, applying device control or
performing a firmware upgrade.
8-pole Phoenix connector with configurable general purpose input/
output pins.
Downstream ports for connecting USB peripherals (e.g. camera,
keyboard, multitouch display).
Upstream ports for connecting USB host devices (e.g. computer).
14
3 4
8
Rear
Rear Panel LEDs ection.
Analog Audio Input and Output
