6. LW2 Programmers' Reference
6.2. Instructions for the Terminal Application Usage
Terminal Application
The LW2 protocol commands can be applied to the
receiver using a terminal application. You need to
install one of them to your control device, for example
Putty or CLI. #terminal
Establishing Connection
Follow the steps for establishing connection to the
receiver:
Step 1. Connect the receiver to a LAN over Ethernet.
Step 2. Open the terminal application (e.g. Putty).
Step 3. Add the IP address of the device (default:
192.168.0.100) and the port number (10001).
Step 4. Select the Raw connection type, and open the
connection.
Once the terminal window is opened, you can enter
the LW2 protocol commands which are listed in the
following sections.

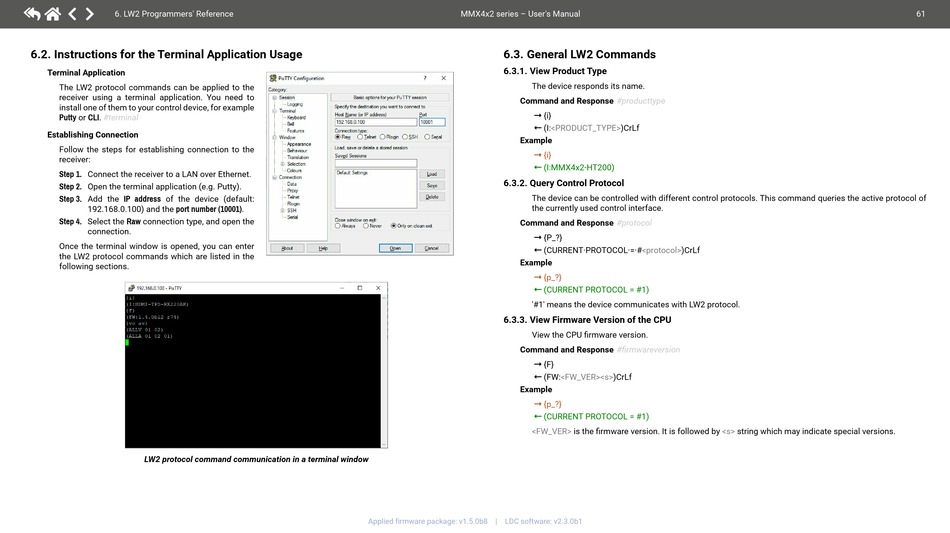

LW2 protocol command communication in a terminal window
MMX4x2 series – User's Manual
6.3. General LW2 Commands
6.3.1. View Product Type
The device responds its name.
Command and Response
 {i}
 (I:<PRODUCT_TYPE>)CrLf
Example
 {i}
 (I:MMX4x2-HT200)
6.3.2. Query Control Protocol
The device can be controlled with different control protocols. This command queries the active protocol of
the currently used control interface.
Command and Response
 {P_?}
 (CURRENT·PROTOCOL·=·#<protocol>)CrLf
Example
 {p_?}
 (CURRENT PROTOCOL = #1)
'#1' means the device communicates with LW2 protocol.
6.3.3. View Firmware Version of the CPU
View the CPU firmware version.
Command and
 {F}
 (FW:<FW_VER><s>)CrLf
Example
 {p_?}
 (CURRENT PROTOCOL = #1)
<FW_VER>
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
#producttype
#protocol
Response #firmwareversion
is the firmware version. It is followed by <s> string which may indicate special versions.
