7. LW3 Programmers' Reference

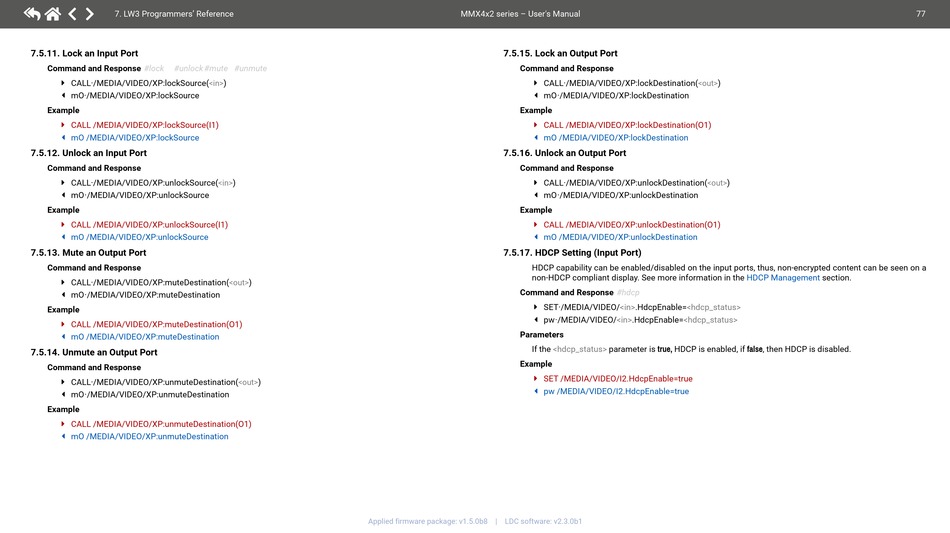

7.5.11. Lock an Input Port
Command and Response #lock #unlock #mute #unmute
ç CALL·/MEDIA/VIDEO/XP:lockSource(
æ mO·/MEDIA/VIDEO/XP:lockSource
Example
ç CALL /MEDIA/VIDEO/XP:lockSource(I1)
æ mO /MEDIA/VIDEO/XP:lockSource
7.5.12. Unlock an Input Port
Command and Response
ç CALL·/MEDIA/VIDEO/XP:unlockSource(
æ mO·/MEDIA/VIDEO/XP:unlockSource
Example
ç CALL /MEDIA/VIDEO/XP:unlockSource(I1)
æ mO /MEDIA/VIDEO/XP:unlockSource
7.5.13. Mute an Output Port
Command and Response
ç CALL·/MEDIA/VIDEO/XP:muteDestination(
æ mO·/MEDIA/VIDEO/XP:muteDestination
Example
ç CALL /MEDIA/VIDEO/XP:muteDestination(O1)
æ mO /MEDIA/VIDEO/XP:muteDestination
7.5.14. Unmute an Output Port
Command and Response
ç CALL·/MEDIA/VIDEO/XP:unmuteDestination(
æ mO·/MEDIA/VIDEO/XP:unmuteDestination
Example
ç CALL /MEDIA/VIDEO/XP:unmuteDestination(O1)
æ mO /MEDIA/VIDEO/XP:unmuteDestination
<in> )
)
<in>
)
<out>
<out> )
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
7.5.15. Lock an Output Port
Command and Response
ç CALL·/MEDIA/VIDEO/XP:lockDestination(
æ mO·/MEDIA/VIDEO/XP:lockDestination
Example
ç CALL /MEDIA/VIDEO/XP:lockDestination(O1)
æ mO /MEDIA/VIDEO/XP:lockDestination
7.5.16. Unlock an Output Port
Command and Response
ç CALL·/MEDIA/VIDEO/XP:unlockDestination(
æ mO·/MEDIA/VIDEO/XP:unlockDestination
Example
ç CALL /MEDIA/VIDEO/XP:unlockDestination(O1)
æ mO /MEDIA/VIDEO/XP:unlockDestination
7.5.17. HDCP Setting (Input Port)
HDCP capability can be enabled/disabled on the input ports, thus, non-encrypted content can be seen on a
non-HDCP compliant display. See more information in the
Command and Response #hdcp
SET·/MEDIA/VIDEO/<in>.HdcpEnable=<hdcp_status>
ç
pw·/MEDIA/VIDEO/<in>.HdcpEnable=<hdcp_status>
æ
Parameters
If the <hdcp_status> parameter is true, HDCP is enabled, if false, then HDCP is disabled.
Example
ç SET /MEDIA/VIDEO/I2.HdcpEnable=true
æ pw /MEDIA/VIDEO/I2.HdcpEnable=true
<out> )
)
<out>
HDCP Management section.
77
