5. Software Control - Lightware Device Controller

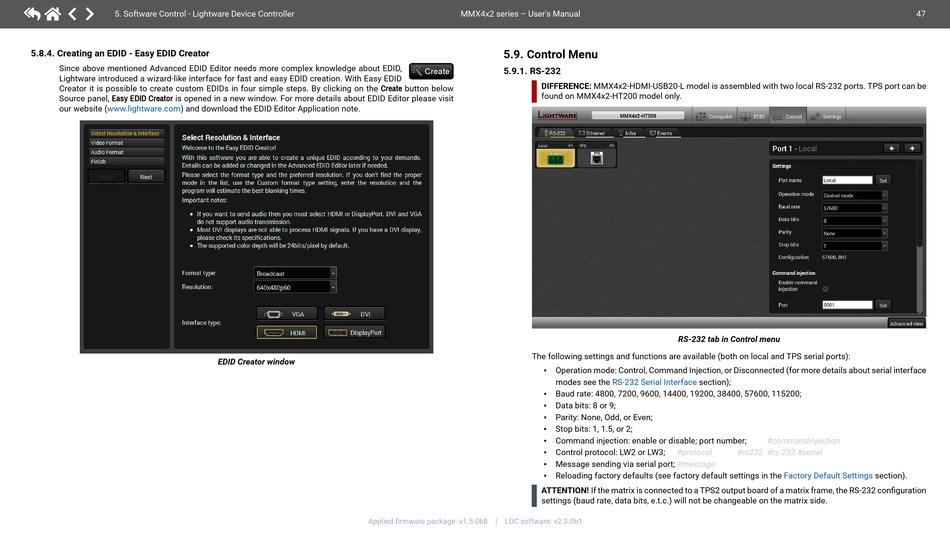

5.8.4. Creating an EDID - Easy EDID Creator
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID,
Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy EDID
Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below
Source panel, Easy EDID Creator is opened in a new window. For more details about EDID Editor please visit
our website (www.lightware.com) and download the EDID Editor Application note.
EDID Creator window
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
A
5.9. Control Menu
5.9.1. RS-232
Create
DIFFERENCE:
MMX4x2-HDMI-USB20-L model is assembled with two local RS-232 ports. TPS port can be
found on MMX4x2-HT200 model only.
The following settings and functions are available (both on local and TPS serial ports):
▪ Operation mode: Control, Command Injection, or Disconnected (for more details about serial interface
modes see the
Baud rate: 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200;
▪
▪ Data bits: 8 or 9;
▪ Parity: None, Odd, or Even;
▪ Stop bits: 1, 1.5, or 2;
▪ Command injection: enable or disable; port number;
▪ Control protocol: LW2 or LW3;
▪ Message sending via serial port;
▪ Reloading factory defaults (see factory default settings in the

ATTENTION! If the matrix is connected to a TPS2 output board of a matrix frame, the RS-232 configuration
settings (baud rate, data bits, e.t.c.) will not be changeable on the matrix side.
RS-232 tab in Control menu
RS-232 Serial Interface section);
#commandinjection
#protocol #rs232 #rs-232 #serial
#message
Factory Default Settings
47
section).
