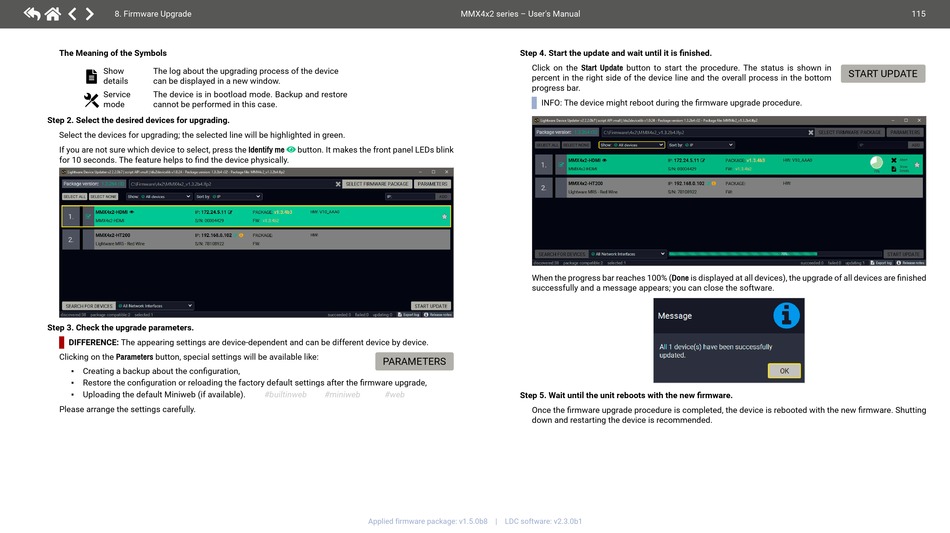

Lightware MMX4x2-HDMI User Manual page 115

   
8. Firmware Upgrade
The Meaning of the Symbols
Show The log about the upgrading process of the device

details can be displayed in a new window.
Service The device is in bootload mode. Backup and restore
mode cannot be performed in this case.
Step 2. Select the desired devices for upgrading.
Select the devices for upgrading; the selected line will be highlighted in green.
If you are not sure which device to select, press the Identify me
for 10 seconds. The feature helps to find the device physically.
Step 3. Check the upgrade parameters.

DIFFERENCE: The appearing settings are device-dependent and can be different device by device.
Clicking on the Parameters button, special settings will be available like:
▪ Creating a backup about the configuration,
Restore the configuration or reloading the factory default settings after the firmware upgrade,
▪
▪ Uploading the default Miniweb (if available).
Please arrange the settings carefully.
button. It makes the front panel LEDs blink

PARAMETERS
#builtinweb #miniweb #web
Applied firmware package: v1.5.0b8 | LDC software: v2.3.0b1
MMX4x2 series – User's Manual
Step 4. Start the update and wait until it is finished.
Click on the Start Update button to start the procedure. The status is shown in
percent in the right side of the device line and the overall process in the bottom
progress bar.

INFO: The device might reboot during the firmware upgrade procedure.
When the progress bar reaches 100% (Done is displayed at all devices), the upgrade of all devices are finished
successfully and a message appears; you can close the software.
Step 5. Wait until the unit reboots with the new firmware.
Once the firmware upgrade procedure is completed, the device is rebooted with the new firmware. Shutting
down and restarting the device is recommended.
115
START UPDATE
